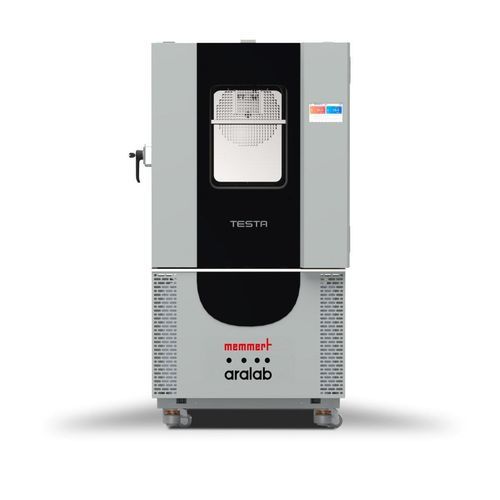

Climate chamber CT300EC50-5Ktemperaturehumiditytemperature stability
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- temperature stability, for environmental simulation
- Applications
- for materials testing
- Configuration
- mobile, floor-standing
- Chamber material
- stainless steel
- Other characteristics
- refrigerated, with humidifier, heating
- Capacity
Min.: 272 l
(71.9 gal)Max.: 272 l
(71.9 gal)- Temperature range
Min.: -52 °C
(-61.6 °F)Max.: 180 °C
(356 °F)- Power
Min.: 11 W
(0.01 hp)Max.: 11 W
(0.01 hp)- Interior length
Min.: 634 mm
(24.96 in)Max.: 634 mm
(24.96 in)- Interior height
Min.: 715 mm
(28.15 in)Max.: 715 mm
(28.15 in)- Interior depth
Min.: 600 mm
(23.62 in)Max.: 600 mm
(23.62 in)- External length
Min.: 1,009 mm
(39.72 in)Max.: 1,009 mm
(39.72 in)- External height
Min.: 1,840 mm
(72.44 in)Max.: 1,840 mm
(72.44 in)- External depth
Min.: 1,340 mm
(52.76 in)Max.: 1,340 mm
(52.76 in)
Description
Overview
Precise environmental simulation for reproducible test results. The TESTA CT / TESTA TT series extends the Memmert range with controlled chambers designed for temperature and humidity testing of components and materials in industrial environments.
Range of functions
Temperature
Humidity
Safety
Standard equipment
Stainless steel interior
Textured stainless steel casing
Electrical data
Ambient conditions
Packing / shipping data
Certifications
Technical specifications
Precise environmental simulation for reproducible test results. The TESTA CT / TESTA TT series extends the Memmert range with controlled chambers designed for temperature and humidity testing of components and materials in industrial environments.
Range of functions
- Adjustable parameters: temperature, relative humidity
- Device functions: climate control regulation, real-time process display, program execution, alarm configuration
- Control: touch screen controller
- Interfaces: Ethernet LAN
Temperature
- Cooling: air-cooled hermetic compressor group (low noise, high efficiency), CFC-free, forced ventilation
- Heating: stainless steel electric heaters in the air treatment tunnel
- Temperature stability (over time): ±0.1 to ±0.3 K
- Setting range: -52 to +180 °C
- Setting accuracy / display resolution: 0.1 °C
Humidity
- Setting range: 10 to 98 %rH
- Humidification: thermostatic bath with dew point control
- Drying: thermostatic bath with dew point control plus additional dry coil
- Accuracy: 0.1 % rH
Safety
- Safety thermostat with adjustable high/low temperature limits and automatic shutdown of thermal systems
- Sensors: 1 Pt100 DIN class A (fixed), 1 Pt100 DIN class A (movable), capacitive humidity sensor (EC)
- Alarms: automatic stop on water failure, high/low humidity and temperature alarms displayed on controller
Standard equipment
- Entry port Ø 80 mm (left)
- Air-cooled condenser (standard on -50 models)
- Mechanical door locking; lockable door with double silicone gaskets and anti-condensation heated frames
- Standard internals: 2 perforated stainless steel shelves
- Optional accessories: water conductivity measuring device, documentation package
Stainless steel interior
- Interior dimensions (W x H x D): 634 x 715 x 600 mm (depth less 35 mm for fan)
- Volume: 272 L
- Max. number of internals: 10
- Max. chamber loading: 120 kg (max. per internal: 25 kg)
Textured stainless steel casing
- Exterior dimensions (W x H x D): 1009 x 1840 x 1340 mm (depth +56 mm door handle)
- Installation: on lockable castors, height adjustable
Electrical data
- Electrical supply: 400 V, 3 ph, 16 A, 50 Hz
- Approx. electrical load: 11 W
Ambient conditions
- Clearances: 1000 mm rear; 500 mm lateral
Packing / shipping data
- Country of origin: Portugal
- Transport: appliances must be transported upright
- Customs tariff number: 8419 8998
- Packed dimensions (W x H x D): 1110 x 2090 x 1520 mm
- Net weight: approx. 535 kg
- Gross weight (packed): approx. 665 kg
Certifications
- Standard units are safety-approved and bear the CE mark
Technical specifications
- Model: CT300EC50-5K
- Manufacturer: Memmert
- Temperature range: -52 to +180 °C
- Temperature accuracy/stability: 0.1 °C; ±0.1 to ±0.3 K
- Humidity range: 10 to 98 % rH
- Humidity accuracy: 0.1 % rH
- Control: touch screen controller
- Interfaces: Ethernet LAN
- Cooling: air-cooled hermetic compressor group (no CFCs)
- Interior volume: 272 L
- Interior dimensions (W x H x D): 634 x 715 x 600 mm
- Exterior dimensions (W x H x D): 1009 x 1840 x 1340 mm
- Max. internals: 10 (2 perforated stainless steel shelves supplied)
- Max. chamber loading: 120 kg (25 kg per internal)
- Entry port: Ø 80 mm (left)
- Door: lockable, double silicone gaskets, anti-condensation heated frames
- Electrical supply: 400 V, 3 ph, 16 A, 50 Hz
- Net weight: approx. 535 kg
- Country of origin: Portugal
