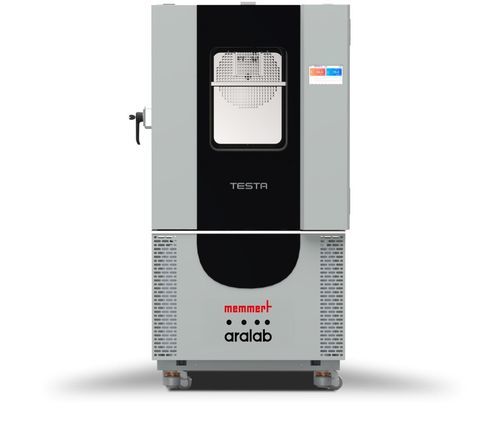

Thermostatic test chamber CT300ECP50-5K

climatictemperaturehumidity

Overview
Precise environmental simulation for industrial testing. TESTA CT and TESTA TT models from Memmert provide reproducible temperature and humidity conditions for material, component and product qualification.

Range of functions
Adjustable parameters: Temperature; Relative humidity
Device functions: Climate control regulation; Real-time display of process variables; Program execution; Alarm configuration and logging
Control unit: Touch screen controller
Interfaces: Ethernet LAN

Temperature
Cooling: Air-cooled hermetic compressor group (low noise, high efficiency), forced ventilation, CFC-free.
Heating: Stainless steel electric heaters located in the air treatment tunnel
Temperature stability (fluctuation): ±0.1 to ±0.3 K
Setpoint range: -52 to +180 °C
Display resolution / setting accuracy: 0.1 °C

Humidity
Setting range: 10 to 98 %rH
Humidification: Thermostatic bath with dew point control
Drying: Thermostatic bath with dew point control plus additional dry coil
Accuracy: 0.1 %rH

Safety
Temperature monitoring: Safety thermostat with high/low configuration and automatic shut-off of thermal systems
Sensors: 1 Pt100 DIN class A; additional movable Pt100 sensors; capacitive and psychrometric humidity sensor (ECP)
Alarms: Automatic stop on water failure; high/low humidity and temperature alarms displayed on controller

Standard equipment
Standard options: Entry port Ø 80 mm (left); air-cooled condenser (standard on -50 models); mechanical door lock
Door: Lockable door with double silicone gaskets and anti-condensation heated frames
Accessories: Water conductivity measuring device; documentation package
Internals supplied: 2 perforated stainless steel shelves

Stainless steel interior
Interior dimensions (w x h x d): 634 x 715 x 600 mm (depth less 35 mm for fan)
Volume: 272 L
Max. number of internals: 10
Max. total loading: 120 kg
Max. loading per internal: 25 kg

Textured stainless steel casing
External dimensions (w x h x d): 1009 x 1840 x 1340 mm (depth +56 mm door handle)
Installation: On lockable, height-adjustable castors

Electrical data
Supply: 400 V, 3 ph. w/o N 16A, 50 Hz / approx. 11 W

Ambient conditions
Clearances: 1000 mm at rear; 500 mm lateral

Packing / shipping data
Country of origin: Portugal
Transport: Appliances must be transported upright
Customs tariff number: 8419 8998
Approx. dimensions incl. carton (w x h x d): 1110 x 2090 x 1520 mm
Net weight: approx. 535 kg
Gross weight (carton): approx. 665 kg

Technical data / specifications

• Model: CT300ECP50-5K
• Adjustable parameters: Temperature; Relative humidity
• Control unit: Touch screen controller
• Interfaces: Ethernet LAN
• Temperature range: -52 to +180 °C; Accuracy: 0.1 °C; Fluctuations: ±0.1 to ±0.3 K
• Humidity range: 10 to 98 %rH; Accuracy: 0.1 %rH
• Cooling: Air-cooled hermetic compressor (CFC-free)
• Humidification / Drying: Thermostatic bath with dew point control; additional dry coil
• Safety: Safety thermostat High/Low; automatic stop on water failure; high/low alarms
• Interior: Stainless steel, 272 L, up to 10 internals, 2 perforated shelves supplied
• Interior dimensions: 634 x 715 x 600 mm
• External dimensions: 1009 x 1840 x 1340 mm
• Max. loading: 120 kg (25 kg per internal)
• Installation: Lockable, height-adjustable castors
• Electrical supply: 400 V, 3 ph., 16 A, 50 Hz
• Clearances: 1000 mm rear; 500 mm lateral
• Packing / shipping: Origin Portugal; transport upright; customs tariff 8419 8998; carton dims 1110 x 2090 x 1520 mm; net weight ~535 kg; gross weight ~665 kg
• Standard options/accessories: Entry port Ø80 mm (left), air-cooled condenser (on -50 models), mechanical door lock, double silicone gaskets, anti-condensation heated frame, water conductivity measuring device, documentation package
