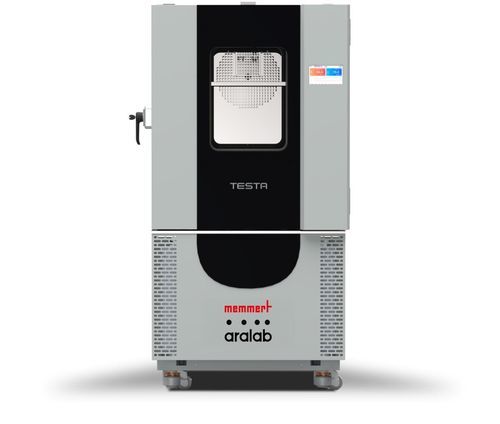

Climate chamber CT300EP50-5K

humiditytemperaturecondensation

Product overview
Precise environmental simulation for reproducible test results. The TESTA CT and TESTA TT series expand the Memmert portfolio with chambers designed for controlled temperature and humidity conditioning in industrial and laboratory applications.

Range of functions

• Adjustable parameters: temperature and relative humidity
• Device functions: climate control regulation, real-time process display, program execution, alarm configuration
• Control unit: touch-screen controller
• Interfaces: Ethernet LAN

Temperature
Cooling: air-cooled hermetic compressor unit with forced ventilation, CFC-free. Heating: stainless steel electric heaters located in the air treatment tunnel. Temperature stability: ±0.1 to ±0.3 K. Setting range: -52 to +180 °C. Setting resolution: 0.1 °C.

Humidity
Range: 10 to 98 % r.h. Humidification/drying: thermostatic bath with dew point control; additional dry coil for dehumidification. Humidity accuracy: 0.1 % r.h.

Safety
Temperature monitoring via safety thermostat with high/low configuration and automatic shutdown of thermal systems. Sensors: Pt100 (DIN class A) sensors (one fixed, one movable) and psychrometric humidity sensor (EP). Automatic alarms for water failure, high/low humidity and high/low temperature with indication on the controller.

Standard equipment

• Entry port Ø 80 mm (left)
• Air-cooled condenser (standard on -50 models)
• Mechanical door locking
• Lockable door with double silicone gaskets and anti-condensation heated frames

Additional accessories

• Water conductivity measuring device
• Documentation package

Internals
2 perforated stainless steel shelves; max. number of internals: 10; max. chamber load: 120 kg; max. load per shelf: 25 kg.

Stainless steel interior
Internal dimensions (W x H x D): 634 x 715 x 600 mm (depth minus 35 mm for fan). Volume: 272 L.

Textured stainless steel casing
Casing dimensions (W x H x D): 1009 x 1840 x 1340 mm (depth +56 mm including door handle). Installed on lockable castors, height adjustable.

Electrical data
Supply: 400 V, 3 ph., without N, 16 A, 50 Hz; approx. 11 W.

Ambient conditions
Required clearances: 1000 mm at rear; 500 mm lateral.

Packing / shipping data
Country of origin: Portugal. Transport: unit must be transported upright. Customs tariff number: 8419 8998. Packaging dimensions (W x H x D): approx. 1110 x 2090 x 1520 mm. Net weight: approx. 535 kg. Gross weight (with carton): approx. 665 kg.

Certifications
Standard units are safety-approved and bear the CE mark.

Technical specifications

• Model: CT300EP50-5K
• Series: TESTA CT / TESTA TT
• Temperature range: -52 to +180 °C
• Temperature resolution / stability: 0.1 °C / ±0.1 to ±0.3 K
• Humidity range: 10 to 98 % r.h.; accuracy 0.1 % r.h.
• Control: touch-screen controller; interface Ethernet LAN
• Interior volume: 272 L; interior dimensions: 634 x 715 x 600 mm
• Max. chamber load: 120 kg; max. internals: 10
• Electrical: 400 V, 3 ph., 16 A, 50 Hz
• Origin: Portugal
