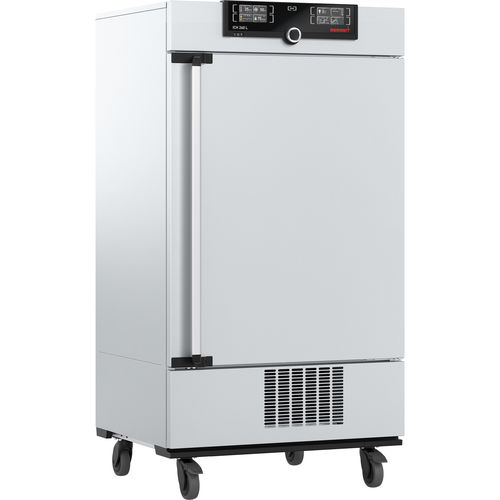

Climatic test cell ICH260L

temperaturehumiditylight

Unparalleled homogeneity of temperature and humidity. For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP – GCCP. Temperature Working temperature range: without humidity: 0 to +60 °C Setting temperature range: 0 to +60 °C Working temperature range: from +10°C up to +60°C with humidity and/or light Setting accuracy temperature: 0.1 °C Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error Humidity Humidity: humidity supply with distilled water from external tank by self-priming pump Humidification: humidification by hot steam generator Humidity: active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % Control of standard components Light: daylight and UV-light can be programmed individually via controller Light: cold white light +/- 6 %, for UV-light +/- 10 % Light: illumination unit consisting of 4 fluorescent lights with cold white light (standard illuminant D65, 6.500K) and 2 UV-lamps in the spectral range of 320-400 nm Control technology ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. Language setting: German, English, Spanish, French, Polish, Czech, Hungarian Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days Function SetpointWAIT: the process time does not start until the set temperature is reached Calibration: three freely selectable values each, temperature/humidity/CO2
