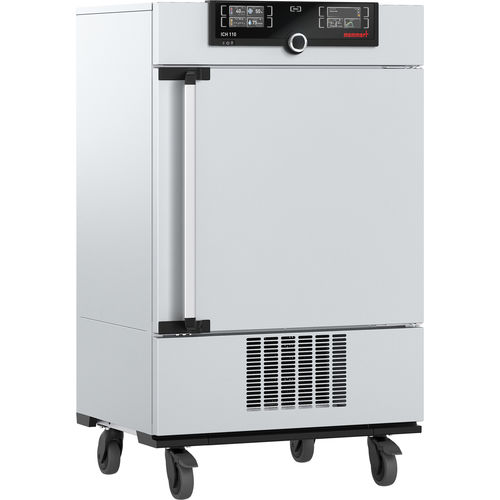

Temperature climate chamber ICH110
humidityCO21-door

temperature climate chamber
temperature climate chamber
Add to favorites
Compare this product

Characteristics

Tested parameter
temperature, humidity, CO2
Number of doors
1-door
Other characteristics
on casters
Temperature range

Min.: -10 °C (14 °F)

Max.: 60 °C (140 °F)

Capacity

108 l (28.5 gal)

Description

Unparalleled homogeneity of temperature and humidity! For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP – GCCP. Temperature Setting temperature range -10 to +60 °C Working temperature range from -10°C up to +60°C without humidity (not suitable for long-term storing at sub-zero temperatures. During permanent operation, the glass door may ice over) Working temperature range from +10°C up to +60°C with humidity and/or light Setting accuracy temperature 0.1 °C Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error Standard equipment Entry port Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by a silicone stopper, standard position at the back Door fully insulated stainless steel door with 2-point locking (compression door lock) Internals 2 stainless steel grid(s), electropolished Works calibration certificate standard values +10 °C and +37 °C, 60 % rh at +30 °C Door inner glass door Humidity Humidity humidity supply with distilled water from external tank by self-priming pump Humidification humidification by hot steam generator Humidity active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % Stainless steel interior Dimensions w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 33 mm for fan) Volume 108 l Max. number of internals 5 Max. loading of chamber 150 kg Max. loading per internal 20 kg Control technology ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
