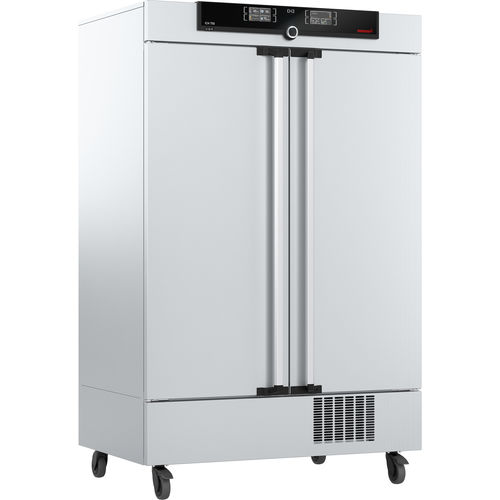

Climatic test cell ICH750
temperaturehumiditylaboratory

climatic test cell
climatic test cell
climatic test cell
climatic test cell
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Applications
laboratory
Configuration
mobile
Number of doors
2-door
Capacity

749 l
(197.9 gal)

Temperature range

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

Unparalleled homogeneity of temperature and humidity! For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP – GCCP. Temperature Setting temperature range: -10 to +60 °C Working temperature range: from -10°C up to +60°C without humidity (not suitable for long-term storing at sub-zero temperatures. During permanent operation, the glass door may ice over) Working temperature range: from +10°C up to +60°C with humidity and/or light Setting accuracy temperature: 0.1 °C Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error Humidity Humidity: humidity supply with distilled water from external tank by self-priming pump Humidification: humidification by hot steam generator Humidity: active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % Control technology ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. adjustable parameters: temperature (Celsius or Fahrenheit), fan speed, relative humidity, programme time, time zones, summertime/wintertime Language setting: German, English, Spanish, French, Polish, Czech, Hungarian Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days Function SetpointWAIT: the process time does not start until the set temperature is reached Calibration: three freely selectable values each, temperature/humidity, for two freely selectable values CO2
