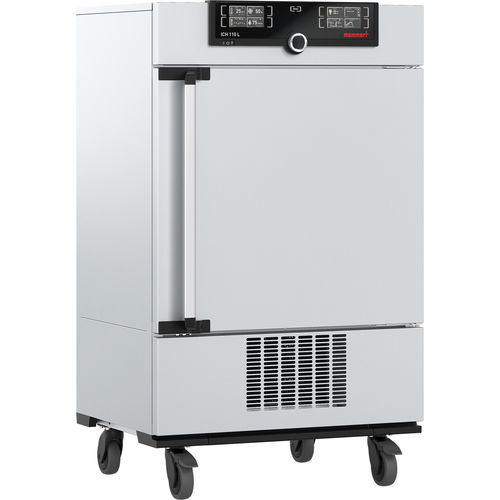

Laboratory climate chamber ICH110 L
temperaturehumidityCO2

laboratory climate chamber
laboratory climate chamber
Add to favorites
Compare this product

Characteristics

Applications
laboratory
Tested parameter
temperature, humidity, CO2
Number of doors
1-door
Other characteristics
on casters
Temperature range

Min.: 10 °C (50 °F)

Max.: 60 °C (140 °F)

Capacity

108 l (28.5 gal)

Description

Unparalleled homogeneity of temperature and humidity! For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP – GCCP. Temperature Working temperature range without humidity: 0 to +60 °C Setting temperature range 0 to +60 °C Working temperature range from +10°C up to +60°C with humidity and/or light Setting accuracy temperature 0.1 °C Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error Heating concept Air jacket air jacket heating system for gentle all-around heating Heating concept no drying-up of the load caused by the cooling device due to separation of thermal jacket from interior Defrosting highly efficient automatic defrosting system Humidity Humidity humidity supply with distilled water from external tank by self-priming pump Humidification humidification by hot steam generator Humidity active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % Standard equipment Entry port Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by a silicone stopper, standard position at the back Door fully insulated stainless steel door with 2-point locking (compression door lock) Internals 2 stainless steel grid(s), electropolished Works calibration certificate standard values +10 °C and +37 °C, 60 % rh at +30 °C Door inner glass door Stainless steel interior Dimensions w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 33 mm for fan) Volume 108 l Max. number of internals 5 Max. loading of chamber 150 kg Max. loading per internal 20 kg
