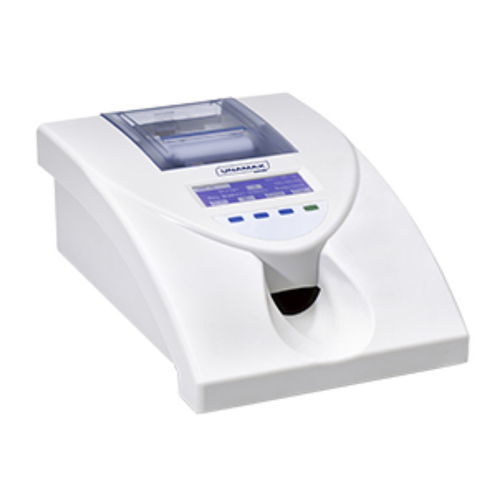

Point-of-care urine analyzer UNAMAX ONE

portablecolorimetriccontinuous access

Product overview
UNAMAX ONE by A. Menarini Diagnostics is a compact, portable urine chemistry analyzer developed for point-of-care use in physicians' offices, emergency departments and small laboratories. It accepts three types of reagent strips and quantifies specific parameters such as ascorbic acid, creatinine, microalbumin and calcium. The analyzer can calculate the albumin-to-creatinine ratio (ACR) to support kidney disease screening. Designed for straightforward operation and low maintenance, UNAMAX ONE provides reliable urinalysis workflow for clinical settings.

Key Features

• Suitable for point-of-care urinalysis and small laboratory environments
• Throughput up to 60 tests/hour (single mode) and up to 125 tests/hour (continuous mode)
• Compatible with three strip types to cover a wide range of tests
• 3 wavelengths with cold LED light source
• Automatic measurement start upon strip detection
• Easy to clean with minimal routine maintenance

Evaluated parameters

• Ascorbic acid
• Nitrite
• Microalbumin
• Leucocytes
• Creatinine
• Ketones
• Urobilinogen
• Bilirubin
• Glucose
• Proteins
• pH
• Blood
• Calcium
• Specific gravity
• Calculated ACR (albumin-to-creatinine ratio)
• Calculated PCR

Product codes & consumables

• 52159 UNAMAX One (product)
• 52240 LabUSticks 10G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD)
• 52241 LabUSticks 11G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC)
• 52242 LabUSticks 14G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC, MALB, CRE, CA)
• 52171 UNAMAX U11 Control
• 52172 UNAMAX U14 Control

Brochure / Documentation
Product brochure available for download (PDF) from the product page.

Technical specifications

• Technology: Reflectance photometry
• Wavelengths / Light source: 3 wavelengths with cold LED light source
• Throughput: Up to 60 tests/hour (single measuring mode); up to 125 tests/hour (continuous measuring mode)
• Memory: 5000 patient test results
• Display: LCD screen
• Printer: Built-in thermal printer
• Size (L x W x H): 290 x 200 x 100 mm
• Weight: 2.0 kg
• Power input: 100-240V AC / 50-60 Hz
• Interfaces: RS232 serial port, parallel port (external printer) and PS2 (barcode reader)
• Operating conditions (recommended): 5-30° C, relative humidity ≤ 80%
• Strip types: Compatible with three different strip types (various LabUSticks configurations)
• Automatic operation: Measurement starts automatically upon strip detection
