Urine test strip reader LabUReader Plus 2

glucosebenchtop

Product overview

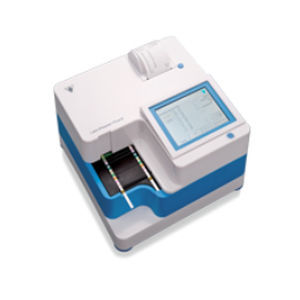

LabUReader Plus 2 by A.Menarini Diagnostics is a semi-automated urine chemistry analyzer designed for medium-sized laboratories. It reads LabStrip U11 Plus urine strips and delivers high-throughput screening with integrated quality control and hospital interface support.

Key Features

• Designed for medium-sized laboratories
• Throughput up to 500 tests/hour
• Patented high-precision reflectance photometry for accurate readings
• Intuitive operation via 5.7" color capacitive touch-screen and graphical interface
• Automatic measurement start when strip is placed on the holder
• Integrated QC functions and system security features
• Standard LIS2 and HL7 support for hospital/LIS integration

LabStrip U11 Plus

• Pack size: 150 tests
• Shelf life: 24 months
• Parameters: blood, glucose, specific gravity, bilirubin, proteins, nitrites, urobilinogen, leukocytes, ketones, pH, ascorbic acid

Technical specifications

• Measurement technology: Reflectance photometry at 505, 530, 620, 660 nm
• Throughput: Up to 500 tests/hour (fast mode)
• Memory: 5,000 patient test results; 1,000 QC results
• Display: 5.7" LCD VGA capacitive color touch-screen (640x480)
• Printer: Built-in thermal printer
• Dimensions (W x D x H): 300 x 300 x 170 mm
• Weight: 6 kg
• Power input: 100-240 V AC, 50-60 Hz
• Interfaces: Ethernet, RS232, USB A, USB B, PS2 (external keyboard/barcode), support for USB Wi‑Fi adapter
• Communication protocols: LIS2 (ASTM+), HL7
• Operating conditions: 15–32° C, 20–80% RH (non-condensing)
