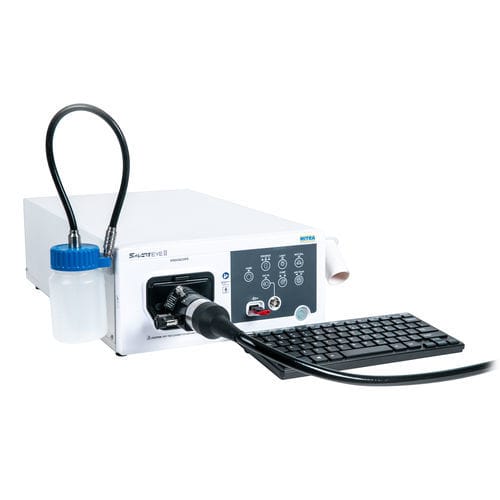

Endoscopy video processor SmartEye II Plus

with recorderwith video monitorHD imaging

Voltage - 100-240 VAC Voltage fluctuation - Within ±10% Frequency - 50/60 Hz Frequency fluctuation - Within ±3 Hz Consumption electric power - 75VA Fuse rating - 4 A, 250 V Fuse size - Ø5.0 × 20.0 mm Size - Dimensions & Weight - 320(W) × 500(L) × 152(H) mm, 10.3kg Classification (medical electrical equipment) Type of protection against electric shock - Class I Degree of protection against electric shock of applied part - Type BF applied part. Where no classification mark appears, the device is a TYPE BF applied part. Degree of protection against explosion - The Video Processor should be kept away from flammable gases. Observation Video signal output - VBS composite (PAL), Y/C, HDMI, HD-SDI, DVI-D (Simultaneous output is possible.) Video signal input - VBS composite (PAL), HDMI White balance - By pressing the white balance switch on the front panel, automatic white balance can be performed. Color tone adjustment - The following color tone adjustments may be using the color tone adjustment on the “System Setup” menu * “R” control:±10 steps * “B” control:±10 steps Iris area selection - The area over which light is measured can be changed according the body part that is being observed. The following to choices can be made using the iris mode selector on the front panel. Average: Normal observation Peak : When focusing on and/or observing a small bright area.
