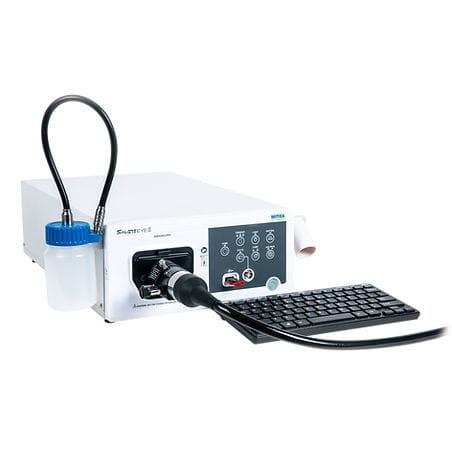

Endoscopy video processor SmartEye II

with video monitorwith recorderHD imaging

Voltage - 100-240 VAC Voltage fluctuation - Within ±10% Frequency - 50/60 Hz Frequency fluctuation - Within ±3 Hz Consumption electric power - 75VA Fuse rating - 4 A, 250 V Fuse size - Ø5.0 × 20.0 mm Size Dimensions & Weight - 320(W) × 500(L) × 152(H) mm, 10.3kg Classification (medical electrical equipment) Type of protection against electric shock - Class I Degree of protection against electric shock of applied part - Type BF applied part. Where no classification mark appears, the device is a TYPE BF applied part. Degree of protection against explosion - The Video Processor should be kept away from flammable gases. Observation Video signal output - VBS composite (PAL), Y/C, HDMI, HD-SDI, DVI-D Simultaneous output is possible. Video signal input - VBS composite (PAL), HDMI White balance - By pressing the white balance switch on the front panel, automatic white balance can be performed.
