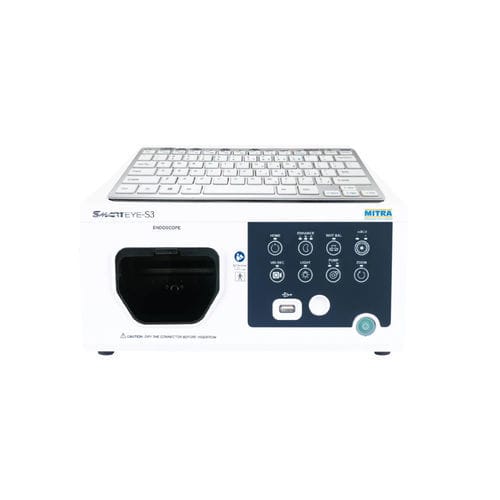

Endoscopy video processor SmartEye-S3

with recorderwith video monitorHD imaging

Voltage - 100-240 VAC Voltage fluctuation - Within ±10% Frequency - 50/60 Hz Frequency fluctuation - Within ±3 Hz Consumption electric power - 18VA Fuse - 3 A, 250 V Ø5.0 × 20.0 mm Size Dimensions & Weight - 445(W) × 320(L) × 152(H) mm, 8.9kg Classification Type of protection against electric shock - Class I Degree of protection against electric shock of applied part - Depends on the applied part. (The degree of protection against electric shock of this product is BF type if the mounting part to be connected to this product is BF type. Note that CF type is not compatible with this product). Degree of protection against explosion - The video processor should be kept away from flammable gases. Observation Analog SD TV signal output - Y/C x 1, VBS x 1 simultaneous output is possible. Digital signal output - HDMI x 2, DVI-D x 2 simultaneous output is possible. White balance - By pressing the white balance switch on the front panel, automatic white balance can be performed.
