Tube furnace for general applications RD 30/200/11

laboratoryair-operatedmulti-gas

Overview
This tube furnace RD 30/200/11 is a compact horizontal unit designed for laboratory and light industrial use up to 1100 °C. The working tube also serves as the support for the heating wires, enabling very fast heat-up rates and a small external footprint.

Standard Equipment

• Maximum temperature (Tmax): 1100 °C
• Working tube: ceramic C 530 with two fibre plugs for operation in air
• Inner tube diameter: 30 mm; heated length: 200 mm
• Dual-shell ventilated housing in textured stainless steel for low surface temperature
• Thermocouple: Type K (up to 1100 °C)
• Solid state relays for low-noise heating operation
• Heating wires wound directly around the working tube for rapid heating
• Controller: R8
• Defined use within the constraints of the operating instructions

Additional equipment

• Over-temperature limiter with adjustable cutout temperature for furnace and load protection
• Gas supply system 1 for operation with non-flammable process gases (e.g., N2, Ar, He, air, forming gas)

Gallery / Example captions

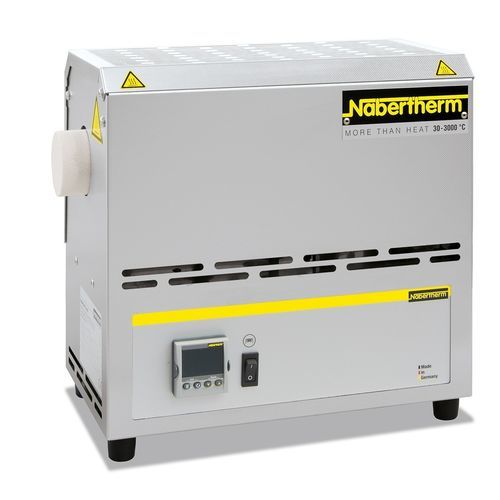

• Tube furnace RD 30/200/11 (main product)
• Controller R8 (example)
• Over-temperature limiter (example)
• Gas panel for one non-flammable process gas

Technical specifications

• Model: RD 30/200/11
• Tmax: 1100 °C
• Outer dimensions (W × D × H): 350 × 210 × 350 mm
• Inner tube Ø: 30 mm
• Heated length: 200 mm
• Length at constant temperature (±5 K): 65 mm
• Connected load (standard): 1.7 kW
• Heating time (empty, up to Tmax −100 K): approx. 20 min
• Electrical connection: single-phase
• Weight (standard): approx. 10 kg
