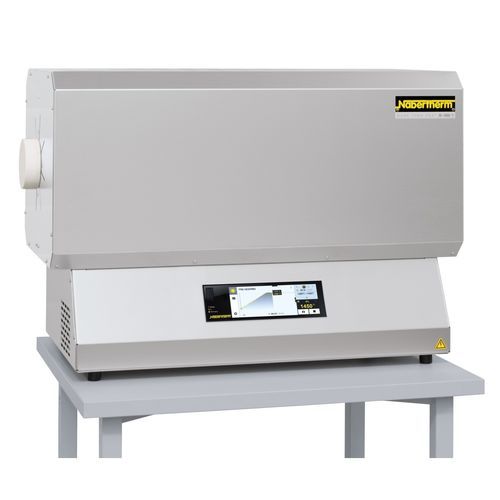

Heat treatment tube furnace RHTC 80/230/16

heatingfor general applicationsair-operated

Description
This compact RHTC tube furnace series features SiC rod heating with integrated switchgear and a touch controller (P580). Suited for versatile high-temperature processes, it provides excellent temperature uniformity and flexible accessory mounting options for industrial applications.

Standard equipment

• Tmax 1600 °C (recommended continuous working temperature 1500 °C)
• SiC rod heating elements arranged parallel to the working tube for high uniformity
• Ceramic working tube C 799 with two fiber plugs (air operation)
• Dual-shell ventilated stainless steel housing with active cooling for low external surface temperature
• Insulation materials without classification under EC Regulation No. 1272/2008 (no RCF)
• Type S thermocouple; solid state relays for low-noise operation
• NTLog Basic for process data logging via USB; controller P580 (touch, 50 programs × 40 segments)

Additional equipment

• Over-temperature limiter with adjustable cutout for furnace and load protection
• Charge control with temperature measurement in the working tube
• Gas supply packages (1, 2 or 4) and related configurations
• VCD software package for process control, monitoring and documentation

Technical specifications (excerpt)
Model | Tmax (°C) | Outer dimensions W x D x H (mm) | Outer tube Ø (mm) | Heated length (mm) | Length constant ±5 K (mm) | Tube length (mm) | Connected load (kW) | Connection | Weight (kg)
RHTC 80/230/16 | 1600 | 600 x 440 x 585 | 80 | 230 | 120 | 600 | 7.4 | 3-phase | 50
RHTC 80/450/16 | 1600 | 820 x 440 x 585 | 80 | 450 | 210 | 830 | 11.0 | 3-phase | 70
RHTC 80/710/16 | 1600 | 1075 x 440 x 585 | 80 | 710 | 345 | 1080 | 13.4 | 3-phase | 90

Notes
Values indicated are outside the tube; temperature difference to the inside of the tube can be up to +50 K. External dimensions vary with optional equipment. Connected load refers to the standard furnace and may increase with options. Tmax may be limited to 1500 °C with certain gas supply configurations.

Features / technical summary

• SiC rod heating for high temperature uniformity; heating elements easy to replace
• Maximum temperature up to 1600 °C (standard continuous recommendation 1500 °C)
• Ceramic working tube C 799 and Type S thermocouple for high-temperature control
• Integrated P580 controller and NTLog Basic data logging via USB
• Dual-shell ventilated stainless steel housing with active cooling for low surface temperatures
• Optional over-temperature protection, charge control and flexible gas supply options
