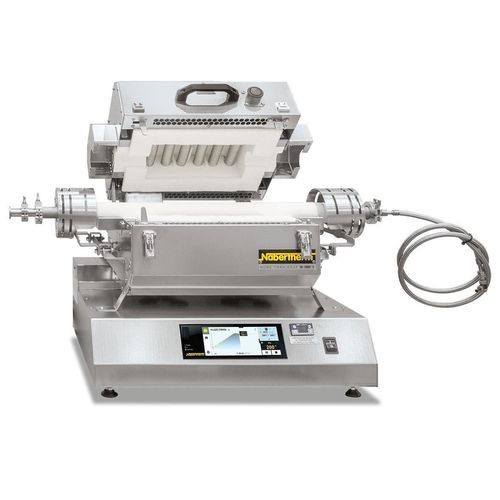

Scientific research tube furnace RS 50/250/11

laboratoryfor general purposesvacuum

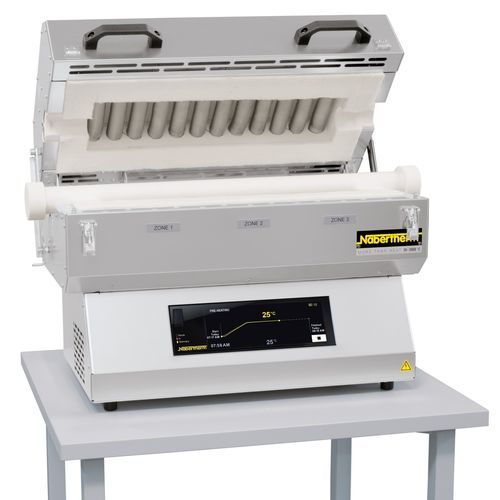

Product overview The RS series split-type tube furnaces are designed for horizontal operation and can be converted for vertical use with an optional frame. The split/opening design enables fast, safe replacement of working tubes and supports tubes of different materials and diameters. Models are available up to 1300 °C with heated lengths from 250 mm to 1000 mm. Gas supply and vacuum packages allow processing in protective gas, process gas or vacuum. Standard touch controller or PLC options enable automated process control and data logging.

Standard equipment

• Tmax: 1100 °C or 1300 °C
• Heated length: 250–1000 mm
• Maximum outer working-tube diameter: up to 170 mm
• Single-zone design (three-zone optional)
• Dual-shell ventilated stainless-steel housing for low surface temperature and stability
• Insulation without classified RCF / no alumino-silicate wool
• Tabletop model with external switchgear and controller
• 2 m connecting cable in protective metal conduit
• Split-type opening; opening temperature < 180 °C
• Ceramic working tube C 530 with two fiber plugs for air operation
• Thermocouple: type N (1100 °C) or type S (1300 °C)
• Solid-state relays for low-noise operation
• Heating elements mounted on support tubes for free radiation
• Controller C550 (touch, 10 programs × 20 segments); NTLog Basic via USB

Additional equipment

• Frame for vertical conversion
• Tube adapter shells for different tube diameters
• Charge control with temperature measurement inside the working tube
• Three-zone control for improved temperature uniformity
• Cooling systems for accelerated cooling of tube and charge
• Gas supply packages (1, 1.5 or 2) for non-flammable process gases
• Gas supply package 4 for hydrogen applications
• Vacuum package for evacuating the working tube
• VCD software package for process control, monitoring and documentation

Technical specifications (selected models)
Model; Tmax (°C); Outer dims RS-horizontal W×D×H (mm); Switchgear W×D×H (mm); Max outer tube Ø (mm); Heated length (mm); Connected load (kW); Electrical connection; Weight (kg)
RS 50/250/11; 1100; 600×470×515; 600×450×218; 50; 250; 2.0; 1-phase; 36
RS 120/500/11; 1100; 670×515×590; 600×450×218; 120; 500; 6.7; 3-phase; 56
RS 170/750/11; 1100; 920×550×640; 600×450×218; 170; 750; 10.7; 3-phase; 84
RS 170/1000/11; 1100; 1170×550×640; 600×450×218; 170; 1000; 13.8; 3-phase; 97
RS 50/250/13; 1300; 600×470×515; 600×450×218; 50; 250; 2.0; 1-phase; 37
RS 120/500/13; 1300; 670×515×590; 600×450×218; 120; 500; 6.7; 3-phase; 56
RS 170/750/13; 1300; 920×550×640; 600×450×218; 170; 750; 12.1; 3-phase; 85
RS 170/1000/13; 1300; 1170×550×640; 600×450×218; 170; 1000; 13.8; 3-phase; 98

Technical characteristics

• Series: RS split-type tube furnaces (laboratory/processing applications)
• Maximum temperature: up to 1300 °C (also 1100 °C versions)
• Heated length options: 250–1000 mm; max outer tube Ø up to 170 mm
• Split/open design for quick tube exchange; opening temperature < 180 °C
• Optional three-zone control to improve uniformity
• Gas and vacuum packages available, including H2 package
• Control options: C550 touch controller, PLC and VCD software; data logging via NTLog
• Insulation without classified RCF for regulatory compliance
