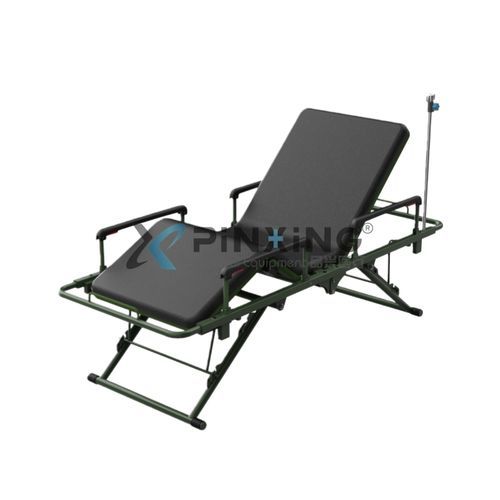

Field hospital bed YZ07

manualfoldingreverse Trendelenburg

Product overview
The YZ07 field hospital bed is a foldable, portable medical bed engineered for emergency medical services, disaster response and temporary clinical facilities. It combines rapid deployment, clinically useful adjustability and materials suitable for frequent cleaning and transport.

Main features

• High-strength aluminium alloy frame, reinforced structure with military-green finish
• Waterproof mattress cover with polyurethane (PU) foam core; mattress size customizable
• Adjustable backrest: 0°–70°; leg section positions: 0° / 30° / 40° for patient positioning
• Two bed surface heights (including mattress): 70 cm and 50 cm
• Trendelenburg / reverse Trendelenburg: 0° / 8°
• Rapid folding/deployment: approx. 60 seconds (single operation)
• Static load capacity (test): 270 kg; net weight approx. 31 kg

Specifications

• Model: YZ07
• Frame material: high-strength aluminium alloy, reinforced, military-green finish
• Mattress: waterproof fabric cover with PU foam padding; example size 195×73×60 cm (customisable)
• Folding/deployment time: ~60 s
• Backrest adjustment range: 0°–70°
• Leg positions: 0° / 30° / 40°
• Bed height (incl. mattress): 70 cm / 50 cm
• Trendelenburg / reverse Trendelenburg: 0° / 8°
• Static load test: 270 kg
• Unfolded dimensions: 200×80×500/700 cm (varies by configuration)
• Folded dimensions: 105×80×21.5 cm
• Weight: approx. 31 kg

Options & accessories

• Optional side rails and IV pole compatible mounts
• Removable stainless-steel storage cabinet and accessory mounting points
• Custom mattress thickness and cover materials for clinical or transport requirements

Applications

• Field hospitals, forward medical units and military medical tents
• Emergency medical services, disaster response and mass-casualty triage sites
• Temporary clinics, remote deployments and humanitarian aid operations
