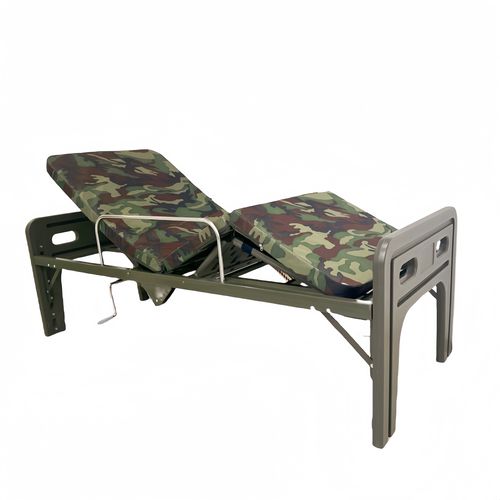

Hospital bed YZ15

emergencymanualfolding

Short description
Item name: Manual folding hospital bed
Model: PX2013-S800
Type: Manual
Brand: PINXING
Origin: Shanghai, China (Mainland)
Main materials: PE (headboard/footboard/bedboards), cold-rolled steel frame with electro-coating and powder-coating
Usage: Hospitals, clinics and emergency patient care facilities

Product description
The PX2013-S800 is designed for hospital and emergency patient care. Headboard, footboard and bedboards are manufactured in high-strength PE engineering plastic providing waterproof and anti-rust properties. The bed frame is made of cold-rolled steel treated by electro-coating and powder-coating. Backrest and footrest are adjusted by gas spring for manual positioning. The steel bed base and reinforced construction are fully tested to support up to 300 kg user weight.

Technical details

• Open size: 2020×800×420 mm
• Folding size: 1004×800×184 mm
• Bed frame: Cold-rolled steel plate with electro-coating and powder-coating
• Headboard/Footboard: PE (high-strength engineering plastic)
• Bedboards: PE
• Adjustment/control: Backrest and footrest adjusted by gas spring (manual)
• Bed base: Steel frame
• Maximum load capacity: Up to 300 kg (tested)

Packaging & Delivery
Packaging: Standard export package
Delivery time: 20–30 working days after order and payment confirmation

Features / Technical specifications

• Model: PX2013-S800
• Type: Manual folding hospital bed
• Brand: PINXING
• Intended use: Hospitals, clinics and emergency care
• Materials: PE components and powder-coated steel frame
• Adjustments: Backrest and footrest via gas spring
• Open/folded dimensions: 2020×800×420 mm / 1004×800×184 mm
• Max. user weight: Up to 300 kg
• Delivery: 20–30 working days
