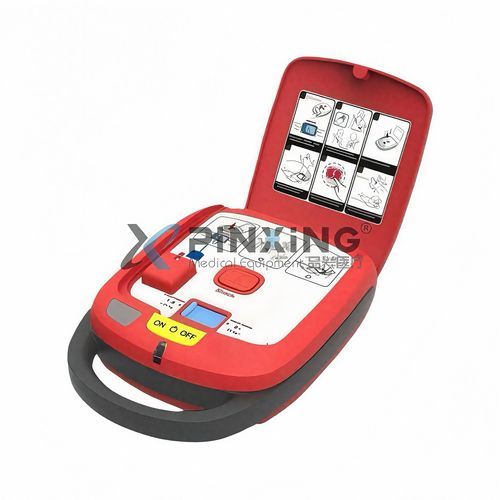

Semi-automatic external defibrillator Altai DP1

for public spacefor non-professionalsBluetooth

The Altai DP1 is an automated external defibrillator (AED) that uses Low Energy Biphasic Truncated Exponential (BTE) waveform technology to deliver impedance-compensated shocks aimed at improving defibrillation success while limiting myocardial injury. It is intended for emergency response in public spaces, healthcare settings and by first responders, providing guided one-step operation, automatic diagnostics and incident data recording.

Key Features

• Low Energy Biphasic Truncated Exponential (BTE) waveform for impedance-compensated defibrillation
• Simultaneous ECG analysis and pre-charging to reduce time-to-shock
• Compact, portable design with Bluetooth connectivity for data transfer
• Preinstalled disposable electrode pads for adult and child use
• One-step operation: open cover to power on and access pads
• Automatic voice guidance throughout the rescue sequence

Technical Advantages

• Biphasic truncated exponential defibrillation designed for low energy delivery and reduced myocardial injury
• Automatic waveform compensation and real-time adjustment based on patient impedance
• Automatic recording of ECG and ambient sounds for complete incident documentation

Intelligent Functions

• Daily self-test and automatic self-test at power-up
• Selectable adult and child modes
• Automatic status indication and low-battery alarms
• Optional PC software for data retrieval and review

Standard Configuration

• 1 x Main unit (AED)
• 1 x Battery pack (non-rechargeable Li-MnO2, 12V 6Ah)
• 1 x Electrode pads (2 pcs, preinstalled)
• 1 x Carry case

Optional Configuration

• AED trainer unit
• First aid kit
• PC software for data management
• Wall-mount cabinet
• Standing cabinet

System Components

• Main unit: AED device
• Wall mount cabinet: for fixed installation
• AED trainer: training device
• Bag: for transport and portability
• Pads: disposable electrode pads for patient connection
• Battery: non-rechargeable power pack

Application Scenarios

• Designed for emergency response to sudden cardiac arrest; suitable for non-professional users thanks to guided operation and intelligent analysis

Technical Specifications

• ECG analysis time: 8.5 s
• Hi-cap charging time: 8 s
• Shock output: 50 J (child), 150 J (adult)
• Data storage: up to 90 minutes for ECG and up to 90 minutes for ambient sounds
• Data transfer protocol: Bluetooth
• Buttons: Power, Shock
• Battery pack: Non-rechargeable Li-MnO2, 12V 6Ah, lifetime 4 years
• Shock frequency: up to 400 shocks
• Electrode pads: disposable, adhesive, preinstalled, 3-year shelf life
• Voice guidance: configurable languages
• Weight: 2.3 kg
• Warranty: 2 years
