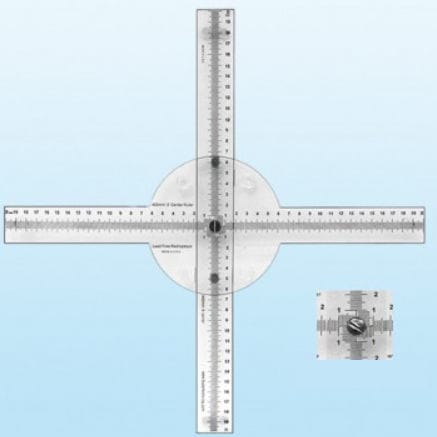

Cross-shaped radiopaque X-ray ruler designed for precise measurement around a central zero point.
Product details
Set of 440 mm "0" centre cross-shaped rulers mounted on a central aluminium pin. The centre is designed to allow easy reading of all 20 graduations in all directions from the centre, with no graduation overlap.
The set swings open for use and closes for storage in the case. The base ruler has a built-in stabilizer with clear rubber feet to keep its position on the image receptor. A set of lines on the base helps the user quickly align the rulers at 90° to each other. Felt bumpers prevent the rulers from scratching each other.
Applications
Technical specifications
Cross-shaped radiopaque X-ray ruler designed for precise measurement around a central zero point.
Product details
Set of 440 mm "0" centre cross-shaped rulers mounted on a central aluminium pin. The centre is designed to allow easy reading of all 20 graduations in all directions from the centre, with no graduation overlap.
The set swings open for use and closes for storage in the case. The base ruler has a built-in stabilizer with clear rubber feet to keep its position on the image receptor. A set of lines on the base helps the user quickly align the rulers at 90° to each other. Felt bumpers prevent the rulers from scratching each other.
Applications
- Radiographic measurements in diagnostic imaging
- Orthopedics and trauma imaging for implant sizing and alignment
- Preoperative planning and image calibration
Technical specifications
- Length: 440 mm (-22.0 cm | + 22.0 cm)
- Graduation: 1 mm
- Centre pin: aluminium
- Box included
