Basic pipetting pipetting robot AP300

for laboratory automationfor sample preparationfor liquid handling

Product overview

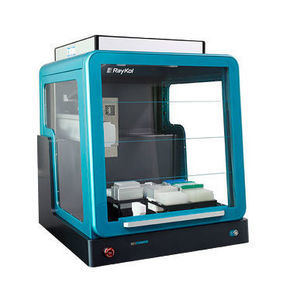

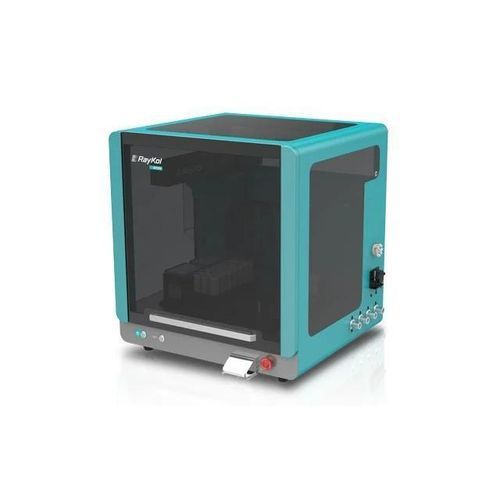

RayKol Auto Prep 300 (AP300) is an automated liquid handling station designed for preparation and management of standard and sample solutions in analytical and QC laboratories. It automates sample data entry, solution preparation and experimental data recording to reduce repetitive manual pipetting and improve process traceability.

Key features

• Two liquid handling modes: batch and single-sample workflows
• Multi-functional sample racks compatible with tubes and vials
• Supports 2–100 mL vial formats and common laboratory consumables
• High-precision syringe pumps for micro- to mid-volume dispensing (5 μL–1000 μL)
• Windows software with Wi‑Fi for protocol setup and data export

Technical specifications
Model — Auto Prep 300 (AP300)
Syringe pump — 3 syringes with different ranges
Max. sample capacity — 288
Sample vials — 2 to 100 mL
Solvent capacity — 8
Dispensing range — 5 μL to 1000 μL per move
Software interface — Windows PC/tablet; Wi‑Fi connection
Dimensions — 71 cm x 67 cm x 74 cm
Weight — 90 kg
Power supply — 200–240 V, 50/60 Hz
Power consumption — 600 W
Storage temperature — 0 to 40 °C
Storage humidity — 20 to 85%
Operating temperature — 10 to 40 °C
Operating humidity — 20 to 80%
