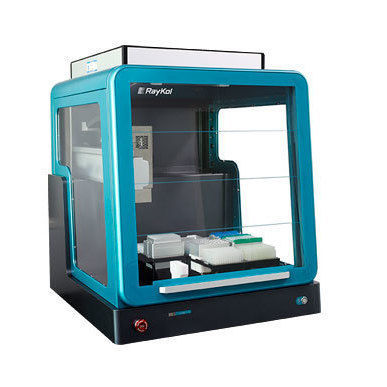

Clinical laboratory pipetting robot Vitae 100

for molecular and cellular biologyfor microbiologydiagnostic

Description
RayKol Vitae 100 automated PCR setup system performs precise distribution of samples from centrifuge vials, flasks and reservoirs into PCR plates, 96‑well and 384‑well plates. Designed for PCR reaction assembly and NGS library preparation, the Vitae 100 reduces manual handling variability to improve repeatability and reproducibility of experimental results. Suitable for microbial testing, molecular diagnostics and other laboratory workflows requiring automated PCR techniques.

Features

• Flexible plate positioning and modular configuration
• Intuitive software interface for streamlined protocol setup
• High level of automation with low maintenance requirements
• Broad applicability in biological and clinical testing workflows

Specifications
Plate capacity — 10
Plate size — 0.2 to 5 mL centrifuge vials, 96‑well plate, 384‑well plate
Pipette range — 1 to 250 μL, 5 to 1000 μL
Software interface — Windows PC
Dimension — 780 mm × 790 mm × 980 mm
Weight — 120 kg
Power supply — 200 to 240 V, 50 Hz
Power rate — 700 W
Operating temperature — 10 to 30 °C
Operating humidity — 10 to 80%

Technical specifications

• Plate capacity: 10
• Plate size: 0.2 to 5 mL centrifuge vials, 96‑well plate, 384‑well plate
• Pipette range: 1 to 250 μL, 5 to 1000 μL
• Software interface: Windows PC
• Dimension: 780 mm × 790 mm × 980 mm
• Weight: 120 kg
• Power supply: 200 to 240 V, 50 Hz
• Power rate: 700 W
• Operating temperature: 10 to 30 °C
• Operating humidity: 10 to 80%
