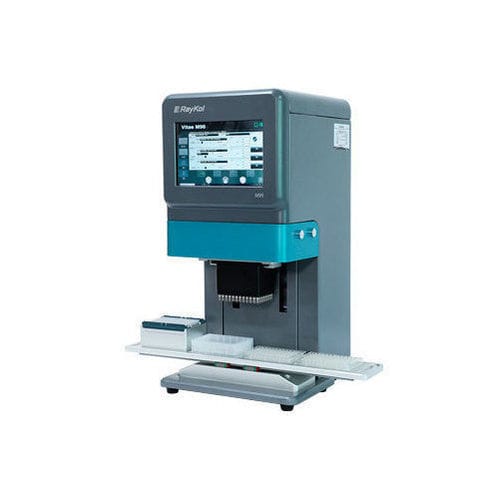

PCR pipetting robot Vitae M96

for sample preparationELISAfor qPCR

Product overview
Vitae M96 automated liquid handling workstation is an automated benchtop pipetting system for 96- and 384-well microplates. It performs plate filling, reagent addition and sample transfer in a single run to streamline high-throughput workflows and reduce manual handling.

Key features

• High throughput: completes dispensing for a 384-well plate in four dispensing runs
• Precise pipette positioning and repeatable volume delivery
• Wide pipetting volume ranges: 0.5–30 μL, 2.5–200 μL, 20–1000 μL
• 10-inch touch screen with intuitive control software for programming and automating protocols

Technical specifications

• Plate capacity: 4
• Plate size: 96, 384
• Pipette range: 20–1000 μL; 2.5–200 μL; 0.5–30 μL
• Software interface: 10-inch touch screen
• Dimensions (W×D×H): 650 mm × 352 mm × 680 mm
• Weight: 47 kg
• Power supply: 200–240 V, 50 Hz
• Operating temperature: 10–30 °C
• Operating humidity: 10–80 %

Applications

• Sample preparation for PCR/qPCR, ELISA and screening assays
• Reagent dispensing, serial dilutions and plate replication
• Routine laboratory workflows using 96- and 384-well formats

Installation & footprint
Compact benchtop footprint suitable for laboratory integration. Compatible with standard 96/384 lab plastics; power and environmental requirements as listed in specifications.
