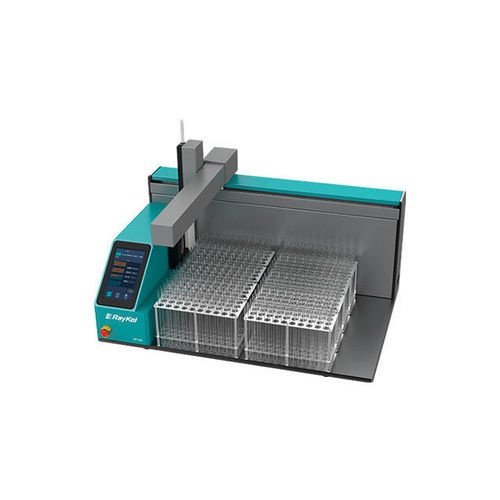

Liquid handling pipetting robot BP100

laboratoryfor basic pipettingfor sample preparation

Product Overview
RayKol BP100 automated microbiology dispensing system combines a three-axis mechanical arm and a high-precision peristaltic pump to dispense reagents and solutions with repeatable accuracy. Compatible with a wide range of test tubes and flasks, the BP100 reduces manual pipetting and increases laboratory throughput for routine microbiology and sample preparation tasks.

Key Features

• Flexible operation: can process two methods simultaneously
• High sample capacity: supports up to 320 test tubes (18 mm × 180 mm)
• Designed for easy cleaning and sterilization
• Multiple calibration modes for dosing accuracy
• Intuitive software with built-in 7-inch touchscreen

Technical Specifications

• Sample capacity: Max. 320 test tubes (18 mm × 180 mm)
• Supported sample vials: 18 mm × 180 mm test tube; 100 mL and 300 mL conical flasks; 225 mL sampling bottle
• Maximum flow rate: Max. 1200 L/min
• Pump: Peristaltic pump, up to 580 rpm
• User interface: 7-inch built-in touch screen
• Dimensions (W×D×H): 83 cm × 59 cm × 53 cm
• Weight: 98 kg
• Power supply: 200–240 V, 50/60 Hz
• Power consumption: 400 W
• Storage temperature: 0 to 40 °C
• Storage humidity: 20 to 85 %
• Operating temperature: 10 to 40 °C
• Operating humidity: 20 to 80 %
