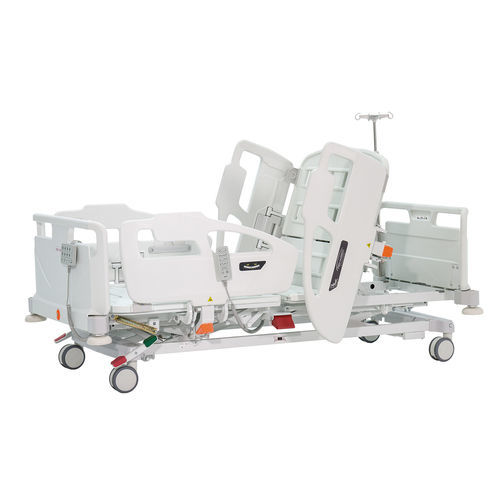

Hospital bed MEDORA

electricTrendelenburgheight-adjustable

Overview
MEDORA hospital bed designed for use in hospital wards and intensive care units (ICUs). It is developed to ensure high patient comfort, ergonomic working conditions for medical staff and maximum safety during hospitalization. The bed allows precise control of the patient’s position including height adjustment and individual positioning of mattress platform segments. The construction is stable and durable for intensive use and the solutions applied support treatment, rehabilitation and elevate the standard of medical care.

Key features

• Innovative dual auto-regression: double auto-regression extends the mattress platform and distributes pressure more evenly (backrest section retracts 90 mm, thigh section 60 mm) to reduce pressure concentration in the pelvic area and help prevent pressure ulcers.
• X-ray translucent mattress platform in the backrest section with an X-ray cassette holder sized 540 × 365 mm (facilitates bedside X-ray imaging).
• Two independent bed control systems: nursing panel (enables nursing staff to control all bed functions) and remote control (7-function system: backrest adjustment, leg section adjustment, auto-contour, mattress platform height adjustment, Trendelenburg/reverse Trendelenburg, CPR, night lighting).
• Quick emergency regulations: mechanical emergency CPR lever beneath the mattress platform for faster activation; global STOP button to lock all bed functions and prevent improper use.

Basic technical data
Overall dimensions (w. x l.) • 980 x 2190 mm
Mattress platform (w. x l.) • 870 x 2000 mm
Height adjustment • 390 – 830 mm
Max. safe working load • 250 kg
Autoregression • 90 + 60 mm
Bed extension • 100, 200, 350 mm

Bed function control (summarised)
NURSING PANEL • enables nursing staff to control all bed functions
REMOTE CONTROL • 7-function system: backrest adjustment, leg section adjustment, auto-contour, mattress platform height adjustment, Trendelenburg and reverse Trendelenburg positions, CPR, night lighting

Safety & emergency
CPR • mechanical emergency lever for fast CPR position activation
STOP BUTTON • single-button lock for all bed functions to protect against improper use

Additional functional notes
- Mattress platform X-ray translucency and cassette holder enables bedside radiography.
- Design supports prevention of pressure ulcers and improves patient comfort during prolonged stays.

Technical specifications

• Model name: MEDORA
• Overall dimensions (width × length): 980 × 2190 mm
• Mattress platform (width × length): 870 × 2000 mm
• Height adjustment range: 390–830 mm
• Maximum safe working load (SWL): 250 kg
• Auto-regression: backrest 90 mm + thigh 60 mm (dual auto-regression)
• Bed extension options: 100 mm, 200 mm, 350 mm
• X-ray cassette holder size: 540 × 365 mm (X-ray translucent backrest section)
• Control systems: Nursing panel (central control) and Remote control (7-function)
• Remote control functions: backrest, leg section, auto-contour, height adjustment, Trendelenburg/reverse Trendelenburg, CPR, night lighting
• Emergency features: mechanical CPR lever under mattress platform; global STOP button to lock functions
