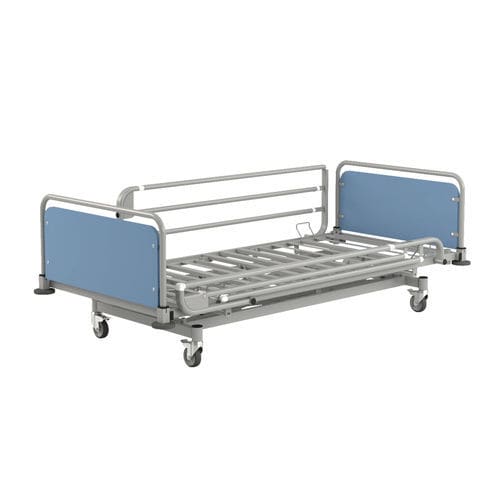

Hospital bed LEO MED

electricTrendelenburgheight-adjustable

Product overview
LEO MED hospital bed with pantograph construction and six support points for stable positioning. Height adjustment range approximately 50 cm (lowest ≈31 cm, highest ≈81 cm depending on wheel diameter), suitable for both low-entry and raised working positions in hospital and rehabilitation environments. Multiple features designed for clinical use and easy caregiver operation.

Basic dimensions:
Overall width x length: 106 x 215 cm
Mattress platform width x length: 90 x 200 cm
Fitting mattress: 90 x 200 cm

Functions:

• Four-section bed frame with steel slats
• Height adjustment range of approx. 50 cm (lowest ≈31 cm depending on wheel diameter)
• Pantograph construction providing stability at all heights
• Backrest adjustment
• Calf section adjustment
• Auto-contour function
• Trendelenburg and reverse Trendelenburg positions
• Three-piece metal side rails folding along the mattress platform, protecting 3/4 of bed length up to 385 mm; automatic locking in upper position; release operated by caregiver (not patient)
• Removable bed ends for cleaning and quick access
• 10-function ergonomic handset with lockable individual functions
• Slots in head section for lift and infusion pole mounting
• Four bumpers to protect during transport

Construction and materials
Powder-coated steel frame built from robust profiles. Electrical components (actuators and control box) concealed under the mattress platform. Design facilitates quick and effective disinfection. Bed ends made of removable CDF Swiss board.

Additional information
Maximum working load: 215 kg
Warranty: 2 years
Standard laminates / colours: WHITE, BLACK
Non-standard colours available on request (subject to sales confirmation).

Technical specifications

• Model name: LEO MED
• Type: Hospital / rehabilitation bed with electric adjustments
• Overall dimensions (W x L): 106 x 215 cm
• Mattress platform (W x L): 90 x 200 cm
• Suitable mattress size: 90 x 200 cm
• Height adjustment range: approx. 31 cm (lowest) to approx. 81 cm (approx. 50 cm range, depends on wheels)
• Bed frame: four-section with steel slats
• Side rails: three-piece metal side rails, protection up to 385 mm, compliant with EN-60601-2-5
• Control: 10-function ergonomic handset (one-hand use, lockable functions)
• Additional equipment: slots for lift and infusion/transfusion pole, 4 bumpers
• Maximum working load (MWL): 215 kg
• Warranty: 2 years
• Finish: powder-coated steel frame; removable CDF Swiss board bed ends
• Colour options: Standard WHITE and BLACK; non-standard colours on request
