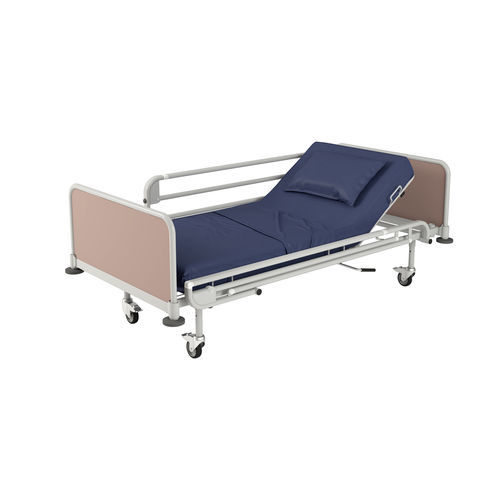

Hospital bed Aries MED

manual4-section

Product overview
Aries MED hospital bed is a cost-efficient manual bed designed for medical and long-term care environments. It offers adjustable mattress platform configurations and practical features for easy operation, cleaning and accessory mounting.

Minimum order quantity
Minimum Order Quantity – 20 pcs

Basic dimensions
Overall width x length: 106 x 220 cm
Mattress platform w. x l.: 90 x 200 cm

Functions and features

• Manually operated bed: basic functions are adjusted via a mechanical raster system allowing stepwise positioning.
• Two mattress platform options: 2-section or 4-section configuration; 4-section allows independent head, thigh and calf adjustments where applicable.
• Removable bed ends: laminated board with steel profiles for simplified replacement and cleaning.
• Side rails: three-profile metal construction, foldable along the platform using an externally placed release button; rounded and disinfectable surfaces.
• Bumpers: four corner bumpers to protect the bed during moves; made of durable, easy-to-disinfect material.
• Holders for additional equipment: sockets on both sides of the head section for mounting lifting poles, infusion poles and other accessories.
• Maximum working load: 215 kg.

Finish & colour options
WOOD - Standard colours

• Beech
• Light Oak

WOOD - Non-standard colours (available at additional cost)

• Light Palermo Oak
• Dark Walnut
• Sonoma Tabac
• Maple
• Golden Oak

Laminates
Available laminate codes and colours: U3114PE (GRAFIT), U3113PE (ORANGE), U120VL (BLUE), U3112PE (LIME GREEN), U3117PE (RED), U3053PE (CAPPUCINO), U3115PE (PURPLE).

Note
Bed visualisation is illustrative. Final finishing and equipment are agreed with the sales department. Actual colours may differ slightly from images.

Technical specifications

• Model name: Aries MED
• Brand: Rehabed
• Minimum Order Quantity: 20 pcs
• Overall dimensions (W x L): 106 x 220 cm
• Mattress platform (W x L): 90 x 200 cm
• Operation: Manual (mechanical raster system)
• Mattress platform options: 2-section or 4-section
• Removable bed ends: laminated board and steel profiles
• Side rails: three-profile metal construction; foldable; rounded; disinfectable
• Bumpers: 4 corner bumpers, durable and easy to disinfect
• Holders/sockets for accessories: on both sides of head section for lifting and infusion poles
• Maximum working load: 215 kg
• Finish options: multiple wood standard and non-standard colours and several laminates (codes listed above)
