Operating table hand support 10-390-K

hand surgeryarm surgerystainless steel

Overview

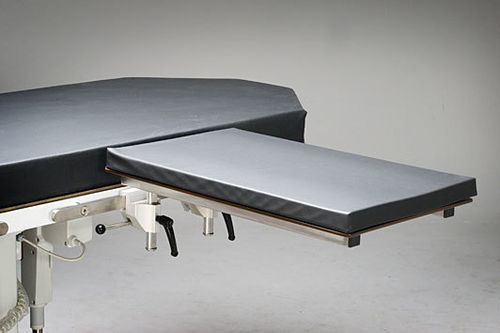

This arm and hand surgery table supports and positions the patient’s arm and hand during procedures. Its compact footprint and a robust plate enable stable use without an additional supporting leg; a table cushion is included.

Key features

• Compact design for use without a supporting leg
• Adjustable height: 200-280 mm
• Safe working load (SWL): 20 kg
• Dimensions: 625 × 340 mm
• Table cushion included

Accessories

• Clamp included: 10018-RH, 10018-RH-UK or 10018-RH-US depending on version
• Clamps for accessory rails available: EU rail (25×10 mm), US rail (1 1/8" x 3/8"), UK rail (1 1/4" x 1/4")

Technical specifications

• Part Number EU: 10-390-K
• Part Number UK: 10-390-UK-K
• Part Number US: 10-390-K-US
• Length: 625 mm
• Width: 340 mm
• Height: 200-280 mm
• Weight: 6.7 kg
• SWL: 20 kg

Materials

• Material: Stainless steel, Aluminum, Backelit
• Construction suitable for standard cleaning and disinfection routines
