Hand surgery support 10-396

arm surgerystainless steelcarbon fiber

Product overview

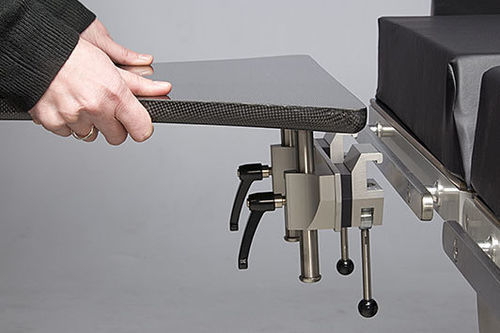

Reison's lightweight arm and hand surgery table is constructed in carbon fiber to combine strength with portability. The table includes twin hook-on clamps and a fiberglass supporting leg that can be mounted on either the left or right side. An antistatic table cushion is supplied.

Accessories

• Clamp included: 10018-RH, 10018-RH-UK or 10018-RH-US depending on version.
• Accessory rails available: EU accessory rail (25×10 mm), US accessory rail (1⅛” x ⅜”), UK accessory rail (1¼” x ¼”).

Specifications / Technical data

• Part Number EU: 10-396
• Part Number UK: 10-396-UK
• Part Number US: 10-396-US
• Length: 840 mm
• Width: 520 mm
• Height adjustment: 685-1160 mm
• Weight: 5.6 kg
• SWL: 40 kg with leg support, 20 kg without leg support
• Material: Stainless steel, Aluminum, Carbon fiber, Glass fiber
