Hand surgery support 10-396-K

arm surgerypositioningradiolucent

Overview

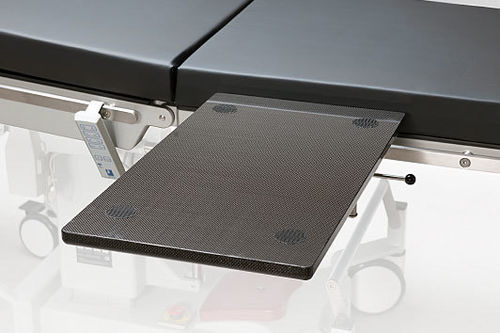

This lightweight, radiolucent arm and hand surgery table is designed to maximize fluoroscopic imaging while remaining compact for flexible intraoperative use. The short format allows procedures without a supporting leg and facilitates positioning in constrained operating rooms.

Key features

• Radiolucent carbon fiber surface optimized for high-quality fluoroscopy.
• Compact short design: can be used without a supporting leg to increase procedural flexibility.
• Lightweight construction (4.2 kg) for easy handling and rapid positioning.
• Twin hook-on clamps for quick, secure attachment to standard OR rails.

Accessories / Additional options

• Clamp included: 10018-RH, 10018-RH-UK or 10018-RH-US depending on version.
• Accessory rails available (choose according to OR rail standard): EU accessory rail (25×10 mm), US accessory rail (1⅛” x ⅜”), UK accessory rail (1¼” x ¼”).

Technical specifications

• Part Number EU: 10-396-K
• Part Number UK: 10-396-UK-K
• Part Number US: 10-396-K-US
• Length: 625 mm
• Width: 340 mm
• Height: 220 mm
• Weight: 4.2 kg
• Safe Working Load (SWL): 20 kg
• Material: Stainless steel, Aluminum, Carbon fiber
