L-hape anesthesia screen 10-310

Overview

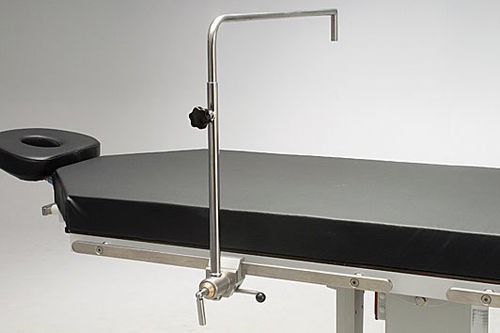

The Reison Anesthesia Screen (10-310) supports a sterile drape and provides an adjustable, sterile barrier that can be positioned along the patient’s body during surgical procedures. It is designed to adapt to multiple operating table configurations and to integrate with common side-rail systems.


Compatibility

Compatible with British, American and Australian operating table side rails.

Adaptable to a range of table profiles and accessory rails.

Accessories

Supplied with clamp 10-307 for secure attachment.

Clamp options available for EU accessory rail (25×10 mm).

Clamp option available for UK accessory rail (1.25 in x 0.25 in).

Technical specifications

Part Number EU: 10-310

Part Number UK: 10-310-UK

Length: 600 mm

Width: 55 mm

Height: min 530 mm — max 780 mm

Weight: 2.1 kg

Materials

Stainless steel, Aluminum, Brass
