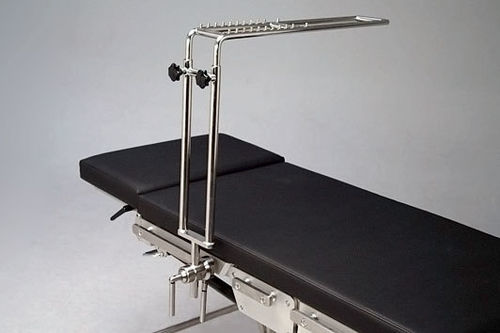

Operating table support 10-410

operating roomaluminumstainless steel

Overview
The supporting frame is designed to work with surgical retractors to maintain an open operating cavity, improving access and visibility for the surgical team. It provides multiple positioning options to optimise retractor performance in various procedures.

Compatibility and positioning

• Compatible with standard surgical retractor systems
• Multiple mounting and adjustment positions to adapt to operative field and patient anatomy
• A clamp (10-304) is included for fixation

Technical specifications

• Part Number EU: 10-410
• Length: 600 mm
• Width: 85 mm
• Height: min 570 mm, max 850 mm
• Weight: 4.1 kg
• SWL (Safe Working Load): 20 kg
• Material: Stainless steel, Aluminum

Applications

• Use in operating rooms for general and specialised surgical procedures
• Improves surgeon access and field visibility during retraction
• Suitable for procedures requiring stable, adjustable support for retractors
