Operating table tube holder 10-610

Overview

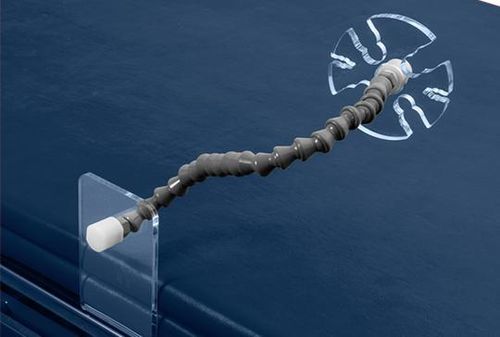

The Tube Holder Small (model 10-610) is a compact, flexible support designed for collecting and securing small medical tubes and cables at the edge of the operating field. Its short flexible arm enables precise positioning while keeping lines clear of the sterile area.

Key features

• Flexible short arm adjustable to different angles for precise positioning.
• Angled plate and a small round flower attachment to hold tubes and cables securely.
• Compatible with tubes/cables of diameters: ø3, ø6, ø14, ø16, ø17, ø18.
• Plate is positioned beneath the operating table mattress to keep tubes out of the surgical field.

Dimensions

• Plate dimensions: 121 x 80 x 230 mm
• Flexible arm length: 30 cm

Technical specifications

• Part Number EU: 10-610
• Weight: 0.3 kg
• SWL (Safe Working Load): 0.1 kg
• Material: PMMA; POM
