Operating table tube holder 10-611

Description

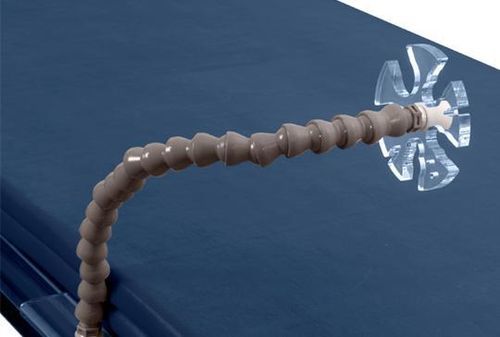

The Tube holder Large (10-611) is a flexible medical tube organizer with an extended adjustable arm designed for managing multiple tubing and cables during surgical procedures. It adapts to different angles for access and routing of tubes of varied diameters.

Design and materials
The device features a straight plate and a larger flower-shaped socket disk with openings for tubes ranging from small and medium to larger diameters: ø3, ø4.5, ø6, ø17, ø18, ø19, ø22, ø24 and ø31. The plate and socket disk are made of PMMA; connector elements use POM. The plate is shaped for placement beneath the operating table mattress.

Dimensions

• Plate dimensions: 5 x 150 x 380 mm
• Flexible arm length: 430 mm

Specifications
Part Number (EU): 10-611
Weight: 0.5 kg
Safe Working Load (SWL): 0.2 kg
Material: PMMA; POM

Features / technical specifications

• Part Number (EU): 10-611
• Weight: 0.5 kg
• Safe Working Load (SWL): 0.2 kg
• Materials: PMMA; POM
• Plate dimensions: 5 x 150 x 380 mm
• Flexible arm length: 430 mm
