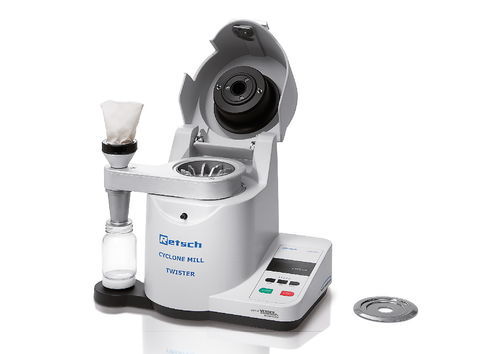

Impact mill TWISTER

cyclonebatchrotor

Product description
The cyclone mill TWISTER is designed for grinding food and feed samples prior to NIR analysis. An optimized rotor and grinding chamber create an air jet that transports the ground material through the integrated cyclone into a 250 ml sample bottle, minimising sample heating and preserving moisture.

Product Advantages

• Suitable for feeds, grains, forage and similar products
• 3 adjustable speeds for sample-adapted grinding
• Cyclone separator with 250 ml collecting bottle for easy sample extraction
• Low cross-contamination risk due to simple cleaning and complete discharge
• User-friendly control panel
• Industrial 900 W motor for continuous laboratory use

Application Examples

• Cereals
• Corn
• Feed pellets
• Forage
• Pasta
• Pharmaceutical products
• Rice
• Soy
• Tobacco

Functional Principle
Size reduction is achieved by impact and friction between the rotor and the fixed grinding ring. Material fed from the hopper is pre-reduced by the high-speed rotor, then expelled by centrifugal force and pulverised between rotor and ring. The two-step grinding keeps residence time short. The integrated cyclone cools and separates the ground material, which is collected in the sample bottle, ensuring representative samples for NIR.

Technical Data (table)
Applications: grinding prior to NIR analysis
Field of application: agriculture, foods/feeds, medicine/pharmaceuticals
Feed material: fibrous, soft
Size reduction principle: impact, friction
Material feed size*: < 10 mm
Final fineness*: < 250 µm
Batch size / feed quantity*: < 250 ml
Speed setting: 10,000 / 12,000 / 14,000 min-1
Rotor peripheral speed: 52 / 62 / 72 m/s
Rotor diameter: 98.5 mm
Sieve sizes: 1 mm / 2 mm
Drive: series-characteristic motor
Drive power: 900 W
Electrical supply: various voltages
Power connection: single-phase
W x H x D closed: 449 x 427 x 283 mm
Net weight: 14 kg
Standards: CE
*depending on feed material and instrument configuration/settings

Technical specifications

• Applications: grinding prior to NIR analysis
• Field of application: agriculture, foods/feeds, medicine/pharmaceuticals
• Feed material: fibrous, soft
• Size reduction principle: impact, friction
• Material feed size: < 10 mm
• Final fineness: < 250 µm (depending on feed material and configuration)
• Batch size / feed quantity: < 250 ml
• Speed settings: 10,000 / 12,000 / 14,000 min-1
• Rotor peripheral speed: 52 / 62 / 72 m/s
• Rotor diameter: 98.5 mm
• Sieve sizes: 1 mm, 2 mm
• Drive power: 900 W (industrial motor)
• Power connection: single-phase; electrical supply: various voltages
• Dimensions (W x H x D closed): 449 x 427 x 283 mm
• Net weight: 14 kg
• Standards: CE
