Oxygen cylinder valve D356

stainless steelgreyhigh-pressure

Description

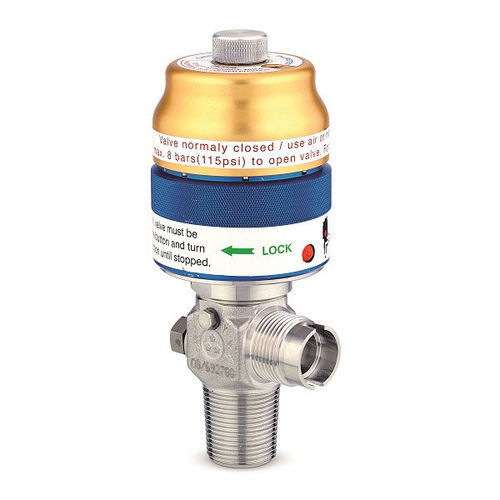

The D356 UHP cylinder valve with oleo-pneumatic actuator is engineered for Ultra High Purity highly oxidizing and reactive gases. The tied diaphragm design minimizes gas-wetted volume while metal-to-metal sealing reduces contamination risk. The oleo-pneumatic actuator combined with a hydraulic amplifier increases seat closure force for secure shutoff and safe operation.

Key advantages

• Tied diaphragm design with minimal gas-wetted volume
• Metal-to-metal sealing
• Patented operation mechanism
• Threaded weep hole for pipe-away connection
• High closing force via hydraulic amplifier

Specifications
Gas type: UHP highly oxidizing/reactive gases
Connections: According to (inter-)national standards or customer specifications
Working pressure: 150 bar
Flow rate: CV = 0.28
Temperature range: -40 to +65 °C
Body materials: Stainless steel 1.4435 (AISI 316L) or Hastelloy® 2.4602 (UNS N06022)
Leak rate: 1×10⁻⁸ mbar·L/s
Seat orifice size: 3.5 mm
Marking: TPED marking, valve number, manufacturing date, connections, 3 stars

Technical specifications

• Gas type — UHP highly oxidizing/reactive gases
• Connections — According to (inter-)national standards or customer specifications
• Working pressure — 150 bar
• Flow rate — CV = 0.28
• Temperature range — -40 to +65 °C
• Body materials — Stainless steel 1.4435 (AISI 316L) or Hastelloy® 2.4602 (UNS N06022)
• Leak rate — 1×10⁻⁸ mbar·L/s
• Seat orifice size — 3.5 mm
• Marking — TPED marking, valve number, manufacturing date, connections, 3 stars
