Solenoid solenoid valve R Series Dual 004
normally openNCfor water

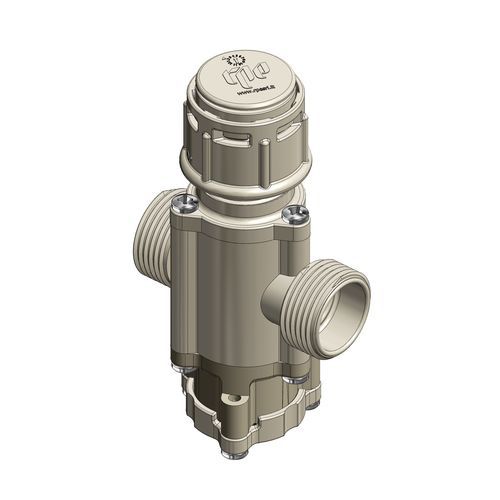

Solenoid solenoid valve - R Series Dual 004 - Rpe - normally open / NC / for water
Solenoid solenoid valve - R Series Dual 004 - Rpe - normally open / NC / for water
Solenoid solenoid valve - R Series Dual 004 - Rpe - normally open / NC / for water - image - 2
Solenoid solenoid valve - R Series Dual 004 - Rpe - normally open / NC / for water - image - 3
Solenoid solenoid valve - R Series Dual 004 - Rpe - normally open / NC / for water - image - 4
Add to favorites
Compare this product
Go to the Rpe website for more information

Characteristics

Type
solenoid
Operation
normally open, NC
Applications
for water, for dispensers
Body
threaded, male, fiberglass
Material$
EPDM, stainless steel, POM, PA66 30% FV, NBR, silicone
Other characteristics
latching, unidirectional
DN

10 mm
(0.394 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.2 bar
(2.9 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: 0 °C
(32 °F)

Description

Valve body:PA 66 - 30% GF Working specifications Working pressure:0,2 - 10 bar Room temperature:Tu 60° C Fluid temperature:Tm 25° C Control:Normally closed (NC), Normally open (NO), Latching (LC) Fluid directionUnidirectional Electrical Connections Faston 6,3 x 0,8 mm Unipolar wires max 5000 mm Bipolar wires max 5000 mm Hydraulic connections Inlet:3/4” male thread Outlet:3/4” male thread Pilot Diaphragm:NBR; LSR , EPDM Core:Stainless steel Coils:F class (155°) Assembly:Self-tapping screws Flow meter Flow meter body:POM Assembly:Self-tapping screws Pressure Restrictor Restrictor body:PA 66 - 30% glass fiber Restrictor cap:PA 66 - 30% glass fiber Gasket:Silicone Diaphragm:EPDM + textile coupled Core:POM Blocking particulars:PA 66 - 30% glass fiber Filter Filter body:PA 66 - 30% glass fiber Filter cap:PA 66 - 30% glass fiber Gasket:Silicone O-Ring:NBR; LSR Filter mesh:Stainless steel Filter orifice:ND 10 mm Working specifications Working pressure:0,2 - 10 bar Room temperature:Tu 60° C Fluid temperature:Tm 25° C Control:Normally closed (NC), Normally open (NO), Latching (LC) Fluid directionUnidirectional Electrical Connections Faston 6,3 x 0,8 mm Unipolar wires max 5000 mm Bipolar wires max 5000 mm Hydraulic connections Inlet:3/4” male thread Outlet:3/4” male thread Pilot Diaphragm:NBR; LSR , EPDM Core:Stainless steel Coils:F class (155°) Assembly:Self-tapping screws
