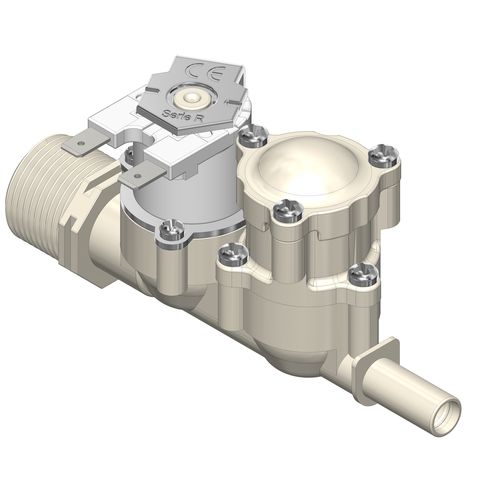

Solenoid valve R DUAL 266normally openNCbistable
Add to favorites
Compare this product
Characteristics
- Type
- solenoid
- Operation
- bistable, normally open, NC
- Applications
- for food, for dispensers, for water
- Body
- threaded, male, fiberglass
- Material$
- EPDM, stainless steel, NBR, PA66 30% FV, POM, silicone
- Number of channels
- 2/2-way
- Other characteristics
- unidirectional
- DN
10 mm
(0.394 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.2 bar
(2.9 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
Body valvePA 66 - 30% glass fiber
Working specifications
Working pressure0,2 - 10 bar
Room temperatureTu 60° C
Fluid temperatureTm 25° C
ControlNC, NO, Latching
Fluid directionUnidirectional
Electrical Connections
Faston 6,3 x 0,8 mm
Unipolar wires max 5000 mm
Bipolar wires max 5000 mm
Hydraulic connections
Inlet:3/4” male thread
Outlet:Spigot 10 mm
Pilot
Diaphragm:NBR; LSR
Core:Stainless steel
Coils:F class (155°)
Assembly:Self-tapping screws
Flow meter
Flow meter body:POM
Assembly:Self-tapping screws
Pressure Restrictor
Restrictor body:PA 66 - 30% glass fiber
Restrictor cap:PA 66 - 30% glass fiber
Gasket:Silicone
Diaphragm:EPDM + textile coupled
Core:POM
Blocking particulars:PA 66 - 30% glass fiber
Filter
Filter body:PA 66 - 30% glass fiber
Filter cap: PA 66 - 30% glass fiberPA 66 - 30% glass fiber
Gasket:Silicone
O-Ring:NBR; LSR
Filter mesh:Stainless steel
Filter orifice:ND 10 mm
