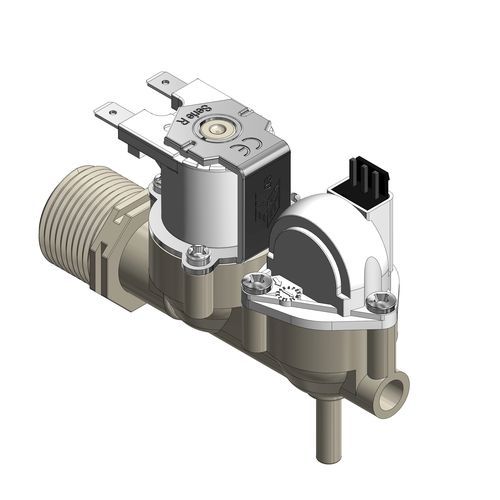

Solenoid solenoid valve R Dual 278normally openNCbistable
Add to favorites
Compare this product
Characteristics
- Type
- solenoid
- Operation
- bistable, normally open, NC
- Applications
- for water
- Body
- fiberglass
- Material$
- EPDM, stainless steel, POM, PA66 30% FV, NBR, silicone
- Other characteristics
- unidirectional, dual-flow
- DN
10 mm
(0.394 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.2 bar
(2.9 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)
Description
Valve body:PA 66 - 30% glass fiber
Working specifications
Working pressure0,2 - 10 bar
Room temperatureTu 60° C
Fluid temperatureTm 25° C
ControlNC, NO, Latching
Fluid directionUnidirectional
Electrical Connections
Faston 6,3 x 0,8 mm
Unipolar wires max 5000 mm
Bipolar wire max 5000 mm
Pilot
Diaphragm:NBR; LSR
Core:Stainless steel
Coils:F class (155°)
Assembly:With screws, serviceable
Flow meter
Flow meter body:POM
Assembly:Self-tapping screws
Pressure Restrictor
Restrictor body:PA 66 - 30% glass fiber
Restrictor cap:PA 66 - 30% glass fiber
Gasket:Silicone
Diaphragm:EPDM + textile coupled
Core:POM
Blocking particulars:PA 66 - 30% glass fiber
Catalogs
No catalogs are available for this product.
See all of Rpe‘s catalogsOther Rpe products
