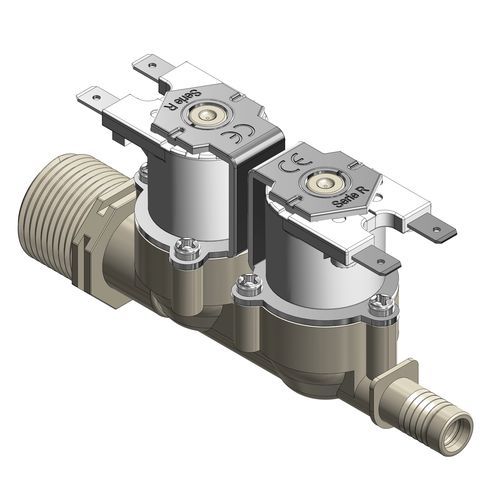

Diaphragm solenoid valve R Series Dual 257
solenoidnormally openNC

Diaphragm solenoid valve - R Series Dual 257 - Rpe - solenoid / normally open / NC
Diaphragm solenoid valve - R Series Dual 257 - Rpe - solenoid / normally open / NC
Add to favorites
Compare this product
Go to the Rpe website for more information

Characteristics

Type
solenoid, diaphragm
Operation
bistable, normally open, NC
Applications
for water, for dispensers
Body
fiberglass
Material$
EPDM, stainless steel, POM, PA66 30% FV, NBR, silicone
Other characteristics
unidirectional
DN

10 mm
(0.394 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.2 bar
(2.9 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: 0 °C
(32 °F)

Description

Valve body:PA 66 - 30% glass fiber Working specifications Working pressure:0,2 - 10 bar Room temperature:Tu 60° C Fluid temperature:Tm 25° C (ED 100%) Control:NC, NO, Latching Fluid directionUnidirectional Electrical Connections Faston 6,3 x0,8 mm Unipolar wires max 5000 mm bipola wires max 5000 mm Hydraulic connections Inlet:3/4” male thread Outlet:Hose tail 10 mm Pilot Diaphragm:NBR; LSR Core:Stainless steel Coils:F class (155°) Assembly:Self-tapping screws Flow meter Flow meter body:POM Assembly:Self-tapping screws Pressure Restrictor Restrictor body:PA 66 - 30% glass fiber Restrictor cap:PA 66 - 30% glass fiber Gasket:Silicone Diaphragm:EPDM + textile coupled Core:POM Blocking particulars:PA 66 - 30% glass fiber Filter Filter body:PA 66 - 30% glass fiber Filter cap:PA 66 - 30% glass fiber Gasket:Silicone O-Ring:NBR; LSR Filter mesh:Stainless steel Filter orifice:ND 10 mm
