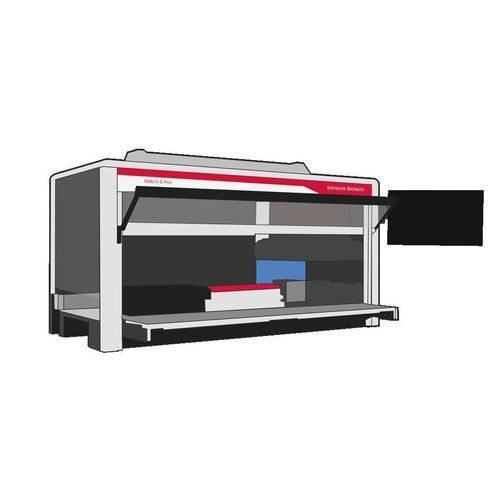

Clinical diagnostic nucleic acid extractor Natch S Pro

high-capacityhigh-throughputfully automated

Product overview
The Natch S Pro (instrument model S-S14A) is an automated nucleic acid extraction system based on advanced magnetic beads technology. It accepts serum and plasma samples, accommodates original sample tubes of various sizes, and integrates barcode scanning, contamination control and temperature regulation to support high-throughput laboratory workflows.

Workflow
Automated extraction workflow supports both pooled (high‑throughput) and individual testing. The system performs automatic sample barcode scanning and sampling (multiple barcode formats supported) and can interface with laboratory information systems (LIS) for streamlined sample tracking and data management.

Features

• CO-RE technology for precise pipetting: Compression-induced O‑Ring Expansion ensures accurate tip attachment and positioning.
• Low‑temperature preservation module: Adjustable 0–15℃ module to help maintain enzyme activity during processing.
• Independent waste liquid channel: Separate waste fluid path reduces risk of bench contamination and facilitates maintenance.
• 96‑head magnetic‑bead platform: Enables rapid parallel processing; full‑board extraction time reduced to ~2 hours; detection workflows can complete 96 tests in ~3.5 hours as configured.
• One‑click automatic operation: Simplified user interface enables fully automated runs with minimal attendance.

Specifications (summary)
Instrument Model: S-S14A
Sample Type: Serum, plasma
Technology Platforms: Advanced magnetic beads technology
Sample Throughput: 576 tests/batch (pooling); 96 tests/batch (individual)
Extraction Time: 576 tests ≤ 3 hours; 96 tests ≤ 2.5 hours
Sample Tube Compatibility: Compatible with original sample tubes of all sizes
Pipetting Range: 0.5–1000 μL
Pipetting Performance: 10 μL CV ≤ 5%; 100 μL CV ≤ 2%; 1000 μL CV ≤ 1.5%
Pipetting Channels: 8 independent channels with dual liquid level detection, clot detection, airtightness detection, tip detection, dynamic positioning
Liquid Level Detection: Dual detection (pressure and capacitance) to identify and record abnormal suction/discharge events
Extraction Principle: Pipetting with side magnetic separation
Magnetic Field Control: Permanent magnet mode with three‑dimensional surround magnetic attraction technology
Tip Handling: CO-RE technology automatic tip loading and ejection
Temperature Control Range: Low temperature module 0–15℃; Heating module 5–105℃
Anti-contamination System: UV lamp, independent waste liquid channel
Barcode Scanning: Automatic sample scanning and sampling system (multiple barcodes supported), scanning time ≤ 1 s
Software: Windows 7 / Windows 10 (recommended)
Interfaces: USB, RS232C; LIS support
Operating Environment: Temperature 15–30 ℃; Humidity 15%–85% (indoor, no condensation)
Dimensions & Weight: Approx. 1664 mm (L) × 903 mm (H) × 795 mm (W); ~150 kg
Power Supply: 115 VAC / 230 VAC ±10%; 50/60 Hz
Certification: CE, NMPA

Technical specifications

• Instrument Model: S-S14A
• Sample Type: Serum, plasma
• Technology Platforms: Advanced magnetic beads technology
• Sample Throughput: 576 tests/batch (pooling); 96 tests/batch (individual)
• Extraction Time: 576 tests ≤ 3 hours; 96 tests ≤ 2.5 hours
• Pipetting Range: 0.5–1000 μL
• Pipetting Performance: 10 μL CV ≤ 5%; 100 μL CV ≤ 2%; 1000 μL CV ≤ 1.5%
• Pipetting Channels: 8 independent channels with multiple detection functions
• Temperature Control: Low temperature 0–15℃; Heating 5–105℃
• Anti-contamination: UV lamp, independent waste liquid channel
• Barcode Scanning: Supports multiple barcodes, scanning time ≤ 1 s
• Software: Windows 7 / Windows 10 (recommended)
• Interfaces: USB, RS232C; LIS support
• Operating Conditions: 15–30 ℃; humidity 15%–85% (no condensation)
• Dimensions & Weight: ~150 kg; 1664 mm × 903 mm × 795 mm
• Power: 115 VAC / 230 VAC ±10%, 50/60 Hz
• Certification: CE, NMPA
