CAD/CAM milling machine S1 Basic

dentalfor dental laboratories1-spindle

Overview

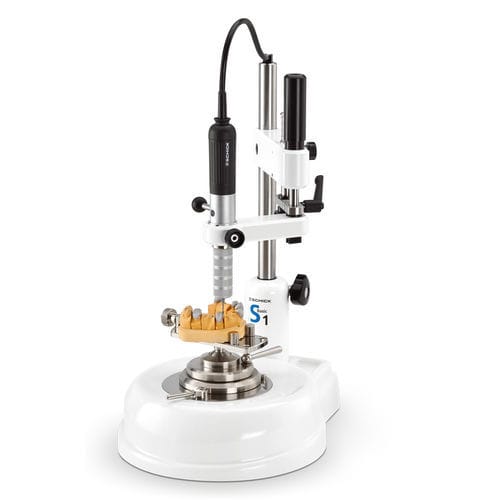

Manufactured by Schick-dental, the compact S1 Basic milling unit is an evolved version of the proven S1 series for milling, surveying, transferring and blocking out. Upgraded features deliver improved working results while keeping the unit compact and suitable for dental laboratories.

Improved technology
The S1 Basic stands out for enhanced ergonomics thanks to a raised base and the Q3 Basic tabletop control unit with an informative display. For added convenience a foot switch can be connected to the control unit.

Utmost precision
An optional LED light head with an extended grip supports strain-free operation. The double-jointed arm provides unrestricted flexibility and ball-bearing guides ensure high precision during drilling and milling.

Technical details: S1 Basic
Speed range: 1,000 - 40,000 rpm
Motor torque: 7 Ncm
Operating voltage: 100 - 240 V
Operating frequency: 50 / 60 Hz
Power: 160 Watt
Concentricity: <0.015 mm
Collet chuck: Ø 2.35 mm series incl. depth stop for short burs; Ø 3.00 mm on request

Milling machine dimensions / weight
Width: 220 mm
Height: 400 mm
Depth: 270 mm
Weight: 7.2 kg

Control unit dimensions / weight
Width: 106 mm
Height: 200 mm
Depth: 207 mm
Weight: 1,880 g

Scope of delivery

• S1 Basic unit
• S1 Basic milling spindle
• Q3 Basic control unit
• Model table

Technical specifications

• Speed range: 1,000 - 40,000 rpm
• Motor torque: 7 Ncm
• Operating voltage: 100 - 240 V
• Operating frequency: 50 / 60 Hz
• Power: 160 Watt
• Concentricity: <0.015 mm
• Collet chuck: Ø 2.35 mm (incl. depth stop for short burs); Ø 3.00 mm optional
• Milling machine dimensions (W×H×D): 220 mm × 400 mm × 270 mm
• Milling machine weight: 7.2 kg
• Control unit dimensions (W×H×D): 106 mm × 200 mm × 207 mm
• Control unit weight: 1,880 g
