CAD/CAM milling machine S2 Profi

dentalfor ceramicswet machining

Product overview

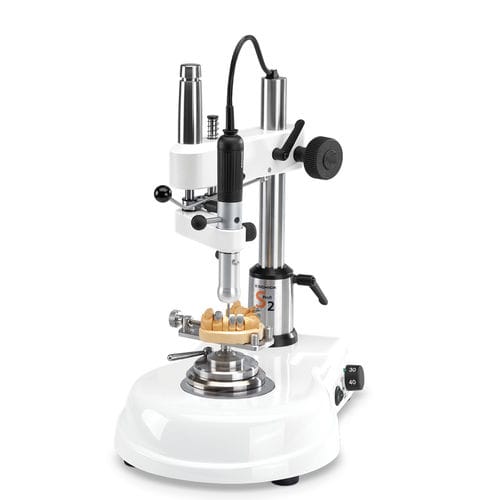

Manufactured by Schick-dental, the S2 Profi is a compact dental milling unit positioned between the S1 Basic and the S3 Master. It features a massive milling arm and column construction to minimise vibrations and deliver precise milling results. The milling spindle includes an integrated LED light head and the model table can be magnetically fixed to the milling table at the push of a button.

Your benefits

• Powerful milling spindle with high rotational stability
• LED light head for shadow‑free illumination
• Magnetic fixation for the model table for quick and secure locking
• Rigid design for vibration‑free milling
• Optional ceramic milling set available for wet grinding

Accessories / Model table
The model table can be fixed in any position using a quick‑release mechanism and center‑position catch and can be magnetically attached to the milling unit. The model table is not included. Optional accessories: dynamic foot controller for speed regulation (Art.Nr. 9440) and foot pedal to start the spindle at preset maximum speed (Art.Nr. 6370/2).

Scope of delivery
S2 Profi milling unit and S2 Profi milling spindle with light head. Model table not included.

Technical specifications

• Speed range: 1,000 - 40,000 rpm
• Motor torque: 7 Ncm
• Operating voltage: 100 - 240 V
• Operating frequency: 50 / 60 Hz
• Power: 160 W (max. 180 W)
• Concentricity: <0.015 mm
• Collet chuck: Ø 2.35 mm (standard) incl. depth stop for short burs; Ø 3.00 mm on request
• Width: 280 mm
• Height: 530 mm
• Depth: 375 mm
• Weight: 13.5 kg
