Medical room 7T MRI Cyclotron
for MRIintegratedlarge

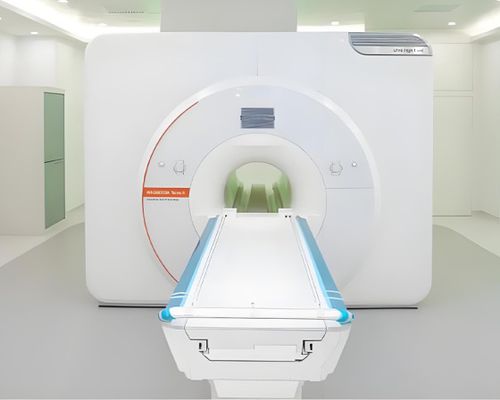

Medical room - 7T MRI Cyclotron - Shandong Hongxinyu Medical Technology Co., Ltd. - for MRI / integrated / large
Medical room - 7T MRI Cyclotron - Shandong Hongxinyu Medical Technology Co., Ltd. - for MRI / integrated / large
Add to favorites
Compare this product
Go to the Shandong Hongxinyu Medical Technology Co., Ltd. website for more information

Characteristics

Applications
for MRI, medical
Configuration
integrated, large
Material
aluminum frame, stainless steel
Options
with MRI system, X-ray shielded
Other characteristics
rigid wall

Description

Product name
Shielded cyclotron room for 7T MRI

Environmental Requirements
  • Magnetic field environment: Non-magnetic construction using non-magnetic aluminum alloys and demagnetized 304 stainless steel to prevent magnetic-field distortion from ferromagnetic materials.
  • Radiation protection: Heavy-ion radiation shielding layers installed in walls, floors and ceilings to block high-energy particles generated by the cyclotron.
  • RF shielding: Fully enclosed hexahedral copper RF shielding enclosure with shielding effectiveness ≥100 dB to protect the 7T ultra-high field imaging system from external electromagnetic interference.


Civil Engineering & Decoration
  • Floor: Double-layer moisture-proof floor with shock-absorbing base designed to support the concentrated load of ultra-high-field magnet and accelerator equipment.
  • Wall and ceiling: Medical-grade non-magnetic color steel panels with sealed dustproof structure meeting hospital infection control requirements for nuclear medicine departments.
  • Auxiliary facilities: Special shielding doors, shielding observation windows, waveguide ventilation windows and power filters. All piping and conduits to be treated with shielding and sealing.


Application Fields
  • Department of Radiology: Integrated diagnostic imaging and interventional services using ionizing radiation (X-rays, gamma rays) for anatomical and functional assessment.
  • Department of Radiation Oncology: Localized therapeutic treatments using ionizing radiation sources and medical accelerators (X-rays, electron beams, proton beams, particle therapies).
  • Department of Nuclear Medicine: Diagnostic and therapeutic services based on radiopharmaceuticals, combining imaging, therapy, research and teaching.


Key words
Shielded cyclotron room for 7T MRI

Technical specifications
  • Commercial name: Shielded cyclotron room for 7T MRI
  • Category: Radiopharmaceutical support
  • Magnetic field requirement: Non-magnetic construction; use of non-magnetic aluminum alloy and demagnetized 304 stainless steel
  • Radiation shielding: Heavy-ion shielding layers on walls, floors and ceilings
  • RF shielding: Fully enclosed hexahedral copper RF shielding enclosure with shielding effectiveness ≥100 dB
  • Floor structure: Double-layer moisture-proof with shock-absorbing base to support heavy concentrated loads
  • Wall & ceiling finish: Medical-grade non-magnetic color steel plates with sealed dustproof structure
  • Auxiliary equipment: Shielding doors, shielding observation windows, waveguide ventilation windows, power filters; all pipelines treated with shielding and sealing
  • Intended application areas: Radiology, Radiation Oncology, Nuclear Medicine
