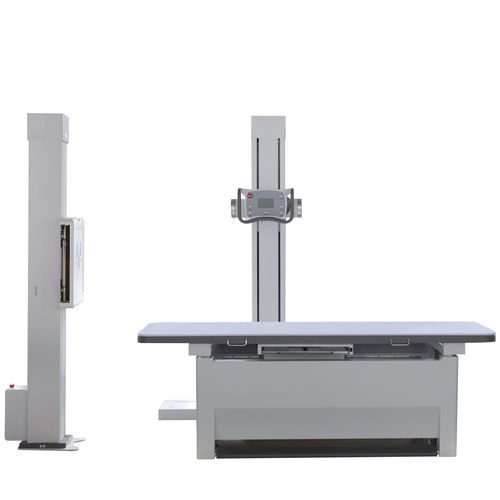

Digital X-ray system DR NKX300

for multipurpose radiographywith floor-standing bucky

Single table with single tube; . 2. High-visualization and operability console, pointer meter display tube voltage,tube current; 3. High voltage and high power thyristor zero control circuit; 4. Radiology table, column, mobile type x ray grid can be linked to facilitate the alignment of the center of the screen; 5. The desktop of the Radiology table can be moved horizontally and vertically for easy use; 6. Colum can rotate土180 axially and laterally, which is convenient for stretcher radiography and vertical bucky stand radiography; 7. Wide voltage design, not harsh on ambient power supply voltage, compatible with 220V / 380V; Fixed column height:2240mm Moving column head stroke:1090mm Bed width:725mm

Basic parameters

Fixed column height: 2240mm

Moving column head stroke: 1090mm

Table size: 200 x 72.5 cm

Fixed column cassette stroke: 1130mm

Left and right travel of moving pillar: 1550mm

Bed height: 710mm

Mobile column height: 2390mm

Bed length: 2000mm

Bed box travel: 990mm
