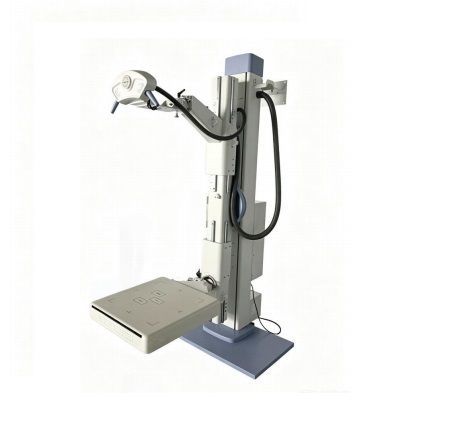

Swivel support arm U Arm Rack

articulatedheight-adjustablefor instruments

Product Overview
This Newheek U arm rack adopts an innovative straight U-arm design equipped with electric power steering control. It can be assembled with X-ray tube, collimator, high-voltage generator and high-voltage cable to constitute a complete U-arm X-ray machine. The rack supports multi-angle rotation and vertical lifting adjustment, satisfying diversified radiography demands in hospitals and clinics.

Main Technical Parameters

• Column Height: 2200mm
• Overall Dimension: 22000 × 1500 × 1000mm
• Tube Rotation Angle: ±90°
• Rack Rotation Angle: -30° ~ 120°
• Vertical Travel of rack: 1200mm
• Cassette Size: 620mm×580mm

Product Advantages

• Innovative straight U-shaped structure with electric power steering control for easy operation.
• Multiple adjustable angles and vertical stroke to realize flexible shooting positions.
• Standardized assembly interface, compatible with mainstream X-ray tube and high voltage systems.
• Stable mechanical structure, reliable long-term continuous clinical use.
• Compact overall dimension, convenient for installation within common radiography rooms.

Commercial Information

• FOB Price: US $0.5 - 9,999 / Piece
• Min.Order Quantity: 100 Piece/Pieces
• Supply Ability: 10000 Piece/Pieces per Month

Specifications / Caractéristiques techniques

• Design: Straight U-arm structure
• Control: Electric power steering control
• Compatibility: Can be assembled with X-ray tube, collimator, high-voltage generator and high-voltage cable
• Movement: Multi-angle rotation and vertical lifting adjustment
• Column Height: 2200mm
• Overall Dimension: 22000 × 1500 × 1000mm
• Tube Rotation Angle: ±90°
• Rack Rotation Angle: -30° ~ 120°
• Vertical Travel of rack: 1200mm
• Cassette Size: 620mm×580mm
• Structure: Stable mechanical structure for continuous clinical use
• Installation: Compact dimension suitable for common radiography rooms
