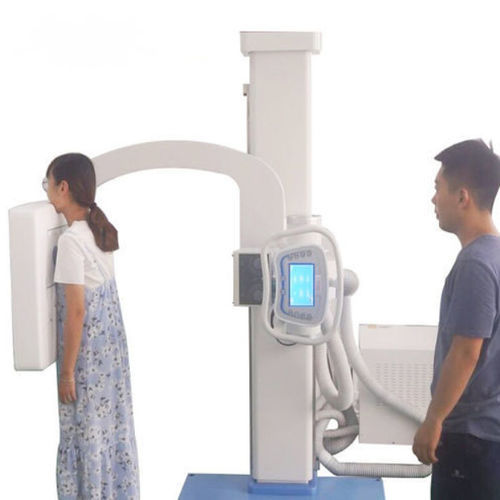

Direct digital X-ray system U300

DRdigitalwith swiveling tube stand

Short description
U-arm X-ray system U300 by NEWHEEK with digital radiography (DR) using a 14×17" amorphous silicon flat panel detector. Designed for general radiography with automatic detector height adjustment, broad SID range and compatibility with multiple radiography tables.

Advantages
Compact U-arm design combined with precision mechanics for repeatable positioning. Automatic detector height adjustment and three preset positions with reset/rotation protection improve workflow and exam reproducibility. a-Si flat panel detector and optimized image chain deliver fast acquisition and reduced X-ray dose.

Highlight

• High image quality: optimized image chain and professional workstation for acquisition, processing and reporting.
• Reliable detector: amorphous silicon FPD with GOS/CSI scintillator for consistent performance.
• Low dose operation: system and detector design minimize patient exposure.
• Flexible integration: compatible with various radiography tables and clinical environments.

Stand Configuration
Robust U-arm stand engineered for stable mechanical travel (U-arm stroke 1200mm±20mm) and wide rotation ranges; detector rotation ±45° and SID adjustable from 1000mm to 1800mm for diverse imaging positions.

Specification (summary)

• Power supply: three phase 380V±10%, 50Hz±1Hz; power capacity ≥55KVA; grounding ≤2 Ω; I.R. ≤0.2 Ω.
• X-ray HV generator: max output 50kVA (100kV, 500mA); tube current 25–630mA; exposure time 1.0ms–6300ms; mAs range 0.1–6630mAs.
• X-ray tube: 30.50KW/125KV, bifocus 1.0/2.0, anode heat capacity 140KJ.
• Collimator: manual, SID = 100cm, light field >160 lux, illumination ratio >4:1, 24V/150W lamp.
• U-arm motion: up/down stroke 1200mm±20mm, lowest position to ground 480mm±20mm; rotation -30°~120°; detector rotation -45°~+45°; SID 1000mm–1800mm.
• Flat Panel Detector: amorphous silicon (a-Si); scintillator GOS/CSI; active area 14×17 inch; pixel pitch 150µm; resolution 3.3Lp/mm; 2304×2800 pixels; 14-bit AD; 16384 gray levels; Gigabit Ethernet interface; full image acquisition ≈5s after exposure.
• Image workstation: real-time image acquisition, storage, processing, printing and transfer; DICOM-compatible.

Newheek Advantages
Original manufacturer with over 16 years of experience in X-ray equipment. Wide spare parts availability, online technical support and support for third-party inspection. Competitive delivery times and after-sales service.

Technical specifications

• Brand: NEWHEEK
• Model: U300
• Origin: Shandong, China (Mainland)
• Power: three phase 380V±10%, 50Hz±1Hz; capacity ≥55KVA
• HV generator max: 50kVA (100kV, 500mA)
• Tube current: 25–630mA; exposure time: 1.0–6300ms; mAs: 0.1–6630mAs
• X-ray tube: 30.50KW/125KV, bifocus 1.0/2.0
• Collimator: manual; light field brightness >160 lux
• U-arm stroke: 1200mm±20mm; rotation ranges as specified; SID 1000–1800mm
• FPD: a-Si 14×17", 150µm pitch, Gigabit Ethernet, ≈5s acquisition
