Oxygen therapy hyperbaric cabin DIA series

on casters2 places

Product Introduction:
Model: MACYPAN Dia90 2.0 ATA Dual-view HBOT Hard Chamber. Capacity: 1–2 adults (model-dependent). Pressure: adjustable up to 2.0 ATA (typical therapeutic range 1.3–2.0 ATA). Size: L2250 × W970 × H1100 mm. OEM & ODM available. Shipping by air or sea; delivery times vary by route. Payment by bank transfer or credit card. Standard one-year parts warranty; extended warranty options available.

Product Description:

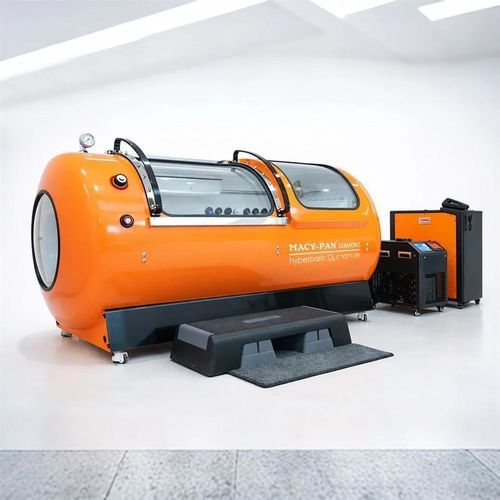

The MACYPAN Dia90 is a clinical-grade hard hyperbaric chamber featuring a panoramic dual-view window design to improve spatial perception and reduce patient claustrophobia. The unit supports adjustable therapeutic pressures for wellness and clinical HBOT protocols. Dual control panels (inside/outside) with graphical interfaces and an integrated two-way communication system enable real-time monitoring and clear operator–patient interaction. Designed for clinics, rehabilitation centres, wellness facilities and specialised home use with simple plug-and-play installation for single-operator handling.

Sizes / Variants:

• Dia85 — optimized for standard home or small-clinic use
• Dia90 — flagship dual-occupancy model with panoramic windows
• Dia100 — extended interior space for enhanced comfort

Key Features:

• Panoramic multi-window patent design to reduce claustrophobia and enhance observation
• 304 stainless steel monobloc construction (seamless cylinder) for structural integrity
• Integrated medical oxygen concentrator 10 L/min, stable at up to 2.0 ATA
• Low external noise operation (~60 dB) with advanced muffling and dedicated compressors
• Smart graphical controls inside and outside with one-touch scene modes for pressure, temperature, ventilation and oxygen concentration
• Inside/outside two-way communication with one-touch call function
• Heavy-duty lockable swivel casters for mobility and secure positioning

Comprehensive Safety Architecture:

• Dual manual pressure relief valves accessible from inside and outside
• Automatic pressure maintenance valve for stable setpoint control
• CO2 removal system to prevent gas accumulation and ensure safe exhaust
• Internal humidification to maintain patient comfort and reduce static risk
• Smart door sensor preventing system start unless door is fully closed
• Emergency pressure relief (manual/automatic) and over-pressure alarm
• Power-failure alarm for unexpected mains loss

Certifications & Quality:
Manufactured to meet multiple international regulatory standards. Representative certifications include:

• CE
• ISO 9001
• ISO 13485
• PED
• NFPA
• ASME
• PICC
• ROHS
• SGS
• UL

Interior Options & Customization:

• Eco-friendly built-in mattress (RoHS-compliant)
• Built-in LED ambient lighting and optional starry-sky ceiling
• Internal smart control and climate regulation systems
• Inside & outside dual pressure gauges (original WIKA components)
• Optional BIBS, external or built-in TV, premium painting and OEM/ODM configurations

Product Specifications:

• Model family: DIA series (Dia85 / Dia90 / Dia100)
• Dimensions (Dia90): L2250 × W970 × H1100 mm (89" × 39" × 44")
• Net weight: 200 kg
• Operating pressure: adjustable up to 2.0 ATA (therapeutic range 1.3–2.0 ATA)
• Capacity: 1–2 adults (model-dependent)
• Materials: 304 stainless steel monobloc + polycarbonate windows
• Oxygen supply: integrated 10 L/min medical oxygen concentrator (stable under 2.0 ATA)
• Air cooler: 589 × 387 × 604 mm — 900 W
• Oxygen generator: 715 × 471 × 757 mm — 1600 W
• Noise level: approx. 60 dB external
• Mobility: heavy-duty lockable swivel casters
• Controls: inside/outside smart graphical UI, dual WIKA pressure gauges
• Safety: dual relief valves, automatic pressure maintenance, CO2 removal, humidification, smart door sensor, emergency relief, over-pressure and power-failure alarms
