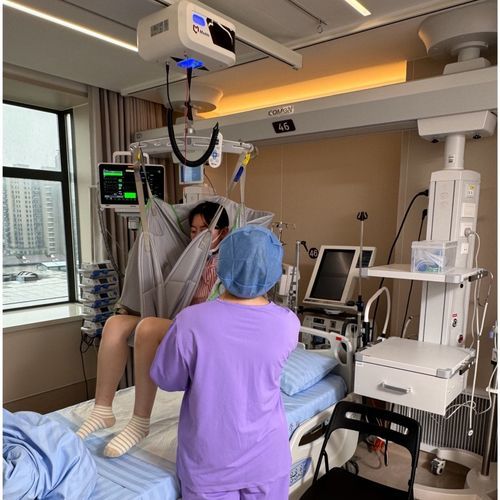

Electric patient lift CL100 Series

battery-operatedceiling-mountedrail-mounted

Overview
The smart lifting/ceiling mobile hoist system is used for moving patients in wards and public areas and also for the partial weight bearing gait training in rehabilitation department. The system delivers a safe, efficient approach to patient assistance, improving nursing quality and operation, reducing the work intensity of nurses, improving working efficiency and avoiding secondary injury to patients and medical staff during movement. A variety of layout schemes and door passing systems provide professional and safe moving schemes in different application scenarios.

Introduction
Meddo's Ceiling Hoist System integrates state-of-the-art technology to support safe, effective care and exercise for patients. The CL100 Series offers multiple extended models to cater to diverse patient requirements: CL100-1 (basic lifting function); CL100-2 (electric lifting and horizontal movement); CL100-3 (advanced version with Automatic Following Mode).

Specification of Mobile Hoist System
Functions: MODEL: CL100-1 | CL100-2 | CL100-3
Size: 350*310*172 mm | 350*310*172 mm | 350*310*172 mm
Main unit weight: 11.1 kg | 13.6 kg | 13.7 kg
Lifting Capacity (kg): 200 kg | 200 kg | 200 kg
Hand control protection class: IPx4 | IPx4 | IPx4
Hand control: LED LCD display; hand-held controller | LED LCD display; hand-held controller | LED LCD display; hand-held controller
Electric Lifting Speed (Full load): 23-50 mm/s | 23-50 mm/s | 23-50 mm/s
Electric horizontal movement speed: / | 20 cm/s | 20 cm/s
Special Function: / | / | Auto-tracking Function / CPM Function
Battery: 25.6V 3.6Ah | 25.6V 3.6Ah | 25.6V 3.6Ah
Charging time: ≤4 hours | ≤4 hours | ≤4 hours
Lift sling Length mm: 2150 mm | 2150 mm | 2150 mm
Integrated Weighing Module: ±0.5 kg | ±0.5 kg | ±0.5 kg
Emergency stopping device (pull cord) accessible from the ground: Yes | Yes | Yes
Safety Module: Safety Module including an emergency pull cord, overload alarm, fault alarm, lifting pause on sling angle deviation and a power-off brake (applies to all models).

Features

• Safe Transfers: Enables smooth and secure transfers across bedroom, bathroom, living room, balcony and supports toileting and bathing, eliminating risks from manual lifting.
• Professional Care Simplified: Single caregiver operation for tasks such as turning, skin care, and bed sheet changes; reduces physical burden and prevents work-related injuries.
• Enhanced Quality of Life: Improves comfort, security and well-being for elderly and patients in home or professional care settings.
• Rehabilitation Support: CL100 Series supports partial rehabilitation training; CL100-3 includes Auto-Following function for active walking training and close-fitting rehabilitation.
• Weighing Module: Automatically measures patient's weight during nursing procedures for real-time monitoring.
• Target Point Lock: Fixed parking function with high-friction materials and mechanical brake to stabilize patient and prevent falls.
• CPM Function (CL100-3): Provides passive joint movement to prevent stiffness and promote early functional recovery.
• Respiratory Rehabilitation Support: Specialized sitting sling for postural breathing exercises and postural drainage for ventilated ICU patients.
• Circulation Management: Assists bedside standing, independent standing and walking to promote blood circulation and recovery.

Slings and Accessories
Available slings: Ambulating/Walking Sling, Supine Sling, Sitting Sling, Limb Sling for CPM. These slings come in various sizes and are lined with soft material for patient comfort. Versatile accessories include customizable door-passing systems and layout schemes to ensure compatibility with on-site facilities (fire protection systems, air conditioners, lighting, doors).

Contraindications
This device is contraindicated in patients with unhealed lower limb fractures, joint injuries in the unstable phase, severe bleeding tendency, orthostatic hypotension, severe osteoporosis, severe cognitive impairment and similar conditions.

Technical specifications

• Model / Series: CL100 Series (CL100-1, CL100-2, CL100-3).
• Lifting capacity: 200 kg (all models).
• Dimensions (main unit): 350 x 310 x 172 mm (all models).
• Main unit weight: CL100-1 = 11.1 kg; CL100-2 = 13.6 kg; CL100-3 = 13.7 kg.
• Hand control: LED LCD display with hand-held controller; protection class IPx4.
• Electric lifting speed (full load): 23-50 mm/s.
• Electric horizontal movement: CL100-2 and CL100-3 = 20 cm/s; CL100-1 = not applicable.
• Special functions: CL100-3 includes Auto-tracking and CPM functions.
• Battery: 25.6V 3.6Ah; Charging time ≤4 hours.
• Lift sling length: 2150 mm.
• Integrated weighing accuracy: ±0.5 kg.
• Safety features: emergency pull cord, overload alarm, fault alarm, lifting pause on sling angle deviation, power-off brake, emergency stopping device accessible from ground.
