Manual patient lift MD-T-200

electricbattery-operatedceiling-mounted

Introduction

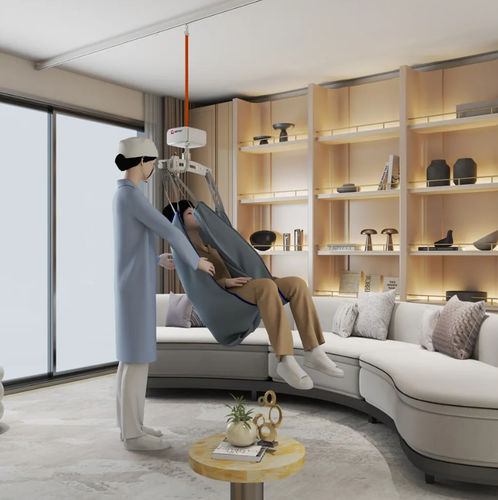

The MD-T-200 is a ceiling track patient lift engineered for home care, hospitals and professional care facilities. It assists sitting and supine transfers and is based on a modular, lightweight overhead track that enables fast installation and configurable layouts for continuous transfer routes between bed, bathroom, wheelchair, sofa and corridor.

Standard Functions

• Maximum lifting capacity: 200 kg
• Single main unit configurable as fixed ceiling-mounted or portable by reversing mounting orientation
• Manual and motorized control options
• Wireless remote control available (optional)
• Rechargeable via hand-held controller; battery powered

Technical Table (key items)
Model: MD-T-200
Main unit size: 198 × 188 × 98 mm
Main unit weight: 3.8 kg
Max Safe Working Load: 200 kg
Electric lifting speeds (examples): 200 kg — lift 15.3 mm/s, lower 24.3 mm/s; 100 kg — lift/lower 22.2 mm/s; no-load — lift 24.2 mm/s, lower 19.1 mm/s
Hand control protection class: IPx4
Control: Hand-held controller; Bluetooth remote (OPTIONAL)
Battery: 25.6 V, 1.8 Ah — Charging time ≤ 4 hours
Standard sling length: 2150 mm (customizable)
Emergency stop (ground-accessible pull cord): Yes
Safety module: Emergency descent, fault alarm, power-off brake

Advantages of the MD-T-200

• Compact and lightweight: Main unit 3.8 kg, suitable for domiciliary and institutional care focused on sitting and lying transfers.
• Dual-mode design: Same main unit supports fixed ceiling installation or portable use by changing mounting orientation.
• Flexible installation: Multi-angle mounting and modular tracks enable door-crossing layouts and adaptation to existing interiors with minimal structural changes.
• Safe transfers: Reduces risks related to manual lifting (falls, bumps) and supports bathroom, wheelchair, flat and bathing transfers.
• Single‑caregiver operation: One-key remote control enables turning, hygiene and sheet changes with reduced physical effort.
• Ergonomic support: Portable support maintains optimal angle for comfort and dignity during transfers.
• Lifecycle cost benefits: Detachable washable slings and low‑maintenance tracks reduce long‑term operating costs.
• Multiple sling options: Supports standing/ambulating slings, sitting slings and supine slings for diverse care needs.

Slings / Accessories
Soft-lined slings are available in multiple sizes and materials for user comfort. Sling types include ambulating, sitting and supine variants suitable for showering, toileting, wheelchair transfers and prone ventilation.

Various fittings and installation
Track layouts and door‑passing solutions can be customized for compatibility with existing facility elements (fire systems, HVAC, lighting, doors). Wall‑friendly installation options are available to suit residential and clinical floor plans. System maximum load-bearing capacity: 200 kg.

Contraindications
Not indicated for patients with unhealed lower‑limb fractures, unstable joint injuries, severe bleeding disorders, orthostatic hypotension, severe osteoporosis, major cognitive impairment or other conditions preventing assisted transfers.

Applications
Intended for home care, hospitals, nursing homes, rehabilitation wards and institutional care settings. Supports transfers for the elderly, postoperative rehabilitation patients, people with lower‑limb mobility limitations and paralyzed individuals.

Technical specifications

• Model: MD-T-200
• Max Safe Working Load: 200 kg
• Main unit size: 198 × 188 × 98 mm
• Main unit weight: 3.8 kg
• Lifting capacity: 200 kg
• Hand control protection class: IPx4
• Control options: Hand-held controller; Bluetooth remote (optional)
• Electric lifting speeds: See technical table above
• Battery: 25.6 V, 1.8 Ah
• Charging time: ≤ 4 hours (via hand controller)
• Standard sling length: 2150 mm (customizable)
• Safety features: Ground-accessible emergency stop, emergency descent, fault alarm, power-off brake
• Installation: Modular ceiling track; fixed or portable configurations; reversible suspension orientation
• Suitable environments: Home care, hospital wards, nursing homes, rehabilitation rooms
