Electric patient lift CL100-C

ceiling-mountedheight-adjustablerail-mounted

Introduction
Meddo's Dynamic Weightless Ceiling Hoist System is an innovative and state-of-the-art technology designed to support safe and effective exercise for patients with various medical conditions.

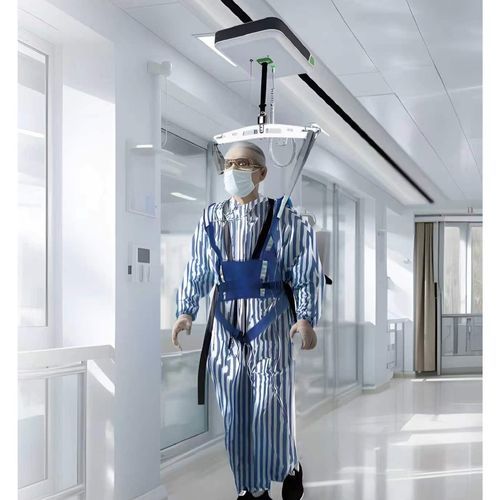

The system offers patients safe and sufficient support and protection in ward corridors, rehabilitation halls and other such areas, enabling the delivery of balance function training and body weight-supported gait training. It is indicated for patients with lower limb dysfunction caused by stroke, fractures and traumatic injuries. The overhead track system is adopted to carry out gait training, sitting and standing training as well as balance function training, which improves patients’ motor ability and safeguards their safety during training. This equipment can be combined with a variety of rehabilitation devices to meet the training needs of patients at all recovery stages, and is suitable for rehabilitation halls in medical institutions.


Indications and clinical use

• Body-weight-supported gait training and treadmill-free ambulation practice
• Sitting-to-standing transfer training and balance rehabilitation
• Therapeutic assistance for patients with hemiplegia, post-operative weakness or orthopedic injuries
• Integration into multidisciplinary rehab programs for progressive load adjustment

Components and controls

• Central Control Console: Intelligent centralized control with real-time monitoring of training parameters, adjustable translational acceleration and speed, and adaptive sling lift/lower range for individualized sessions
• Tablet Controller (optional): Wireless synchronization with central console for mobile control by clinicians during patient sessions

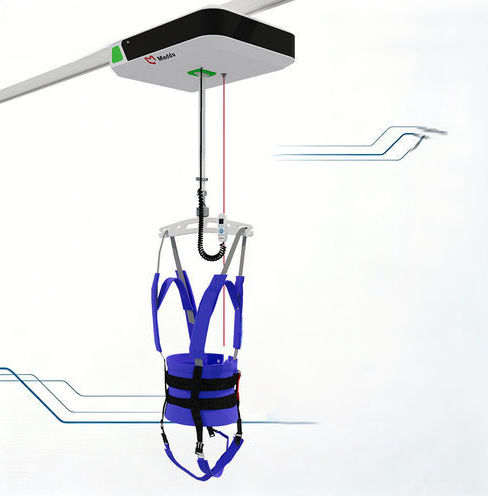

• Overhead track and carrier: Designed for continuous corridor and therapy-hall coverage; compatible with standard ceiling installations

Technical specifications

• Model: CL100-C
• Brand: Meddo
• Size (main unit): 710 x 530 x 175 mm
• Main unit weight: 50 kg
• Lifting capacity: 200 kg
• Electric lifting speed: 0–50 cm/s (adjustable)
• Electric horizontal movement speed: 0–50 cm/s (adjustable)
• Hand control protection class: IPx4
• Control: Central Control Console + (optional) Tablet Controller
• Special functions: Electric 4-way movement; Dynamic weight reduction 0–100 kg (adjustable); Adaptive function; Fall-prevention modes; Full-track charging; Integrated patient training database; Sitting/standing and gait training modes
• Integrated weighing module: accuracy as per manufacturer specification (consult technical datasheet)

Features of CL100-C Features of CL100-C
*Dynamic Weight Support
The device is equipped with high-precision built-in sensors for dynamic sensing. It can adjust the sling height in real time based on the patient’s condition and deliver a nearly constant supporting force to the patient. This function is applicable for functional movement training in early-stage patients, including gait training, sitting and standing training, core balance training and other such exercises.

*Automatic Moving Speed Resistance Suitable for All Rehab Levels
The ceiling lift system offers Automatic Moving Speed Resistance, which can be adjusted to match the user's walking rehabilitation level, enabling progressive training. The Dynamic Weightless Ceiling Hoist System is suitable for patients at all rehabilitation stages,also can be used to train the entire body, including core and lower body muscles.

*Electric 4-Way Movement Function
The device features electrically controlled vertical lifting and horizontal translation, and is easy to operate. It meets the rehabilitation needs of most patients and is specially designed for individuals in need of rehabilitation.

*Adaptive Function
The system is equipped with an adaptive adjustment function, which can make automatic adjustments in accordance with the patient’s movement direction, movement speed, center of gravity height, weight reduction parameters, site terrain and other relevant factors during exercise.

*Auto-Following Function
CL100-C features an Auto-Tracking function that intelligently follows the patient's progress, minimizing external force impact on the patient and focusing on active walking training. Particularly for patients with poor balance and stability in the initial stage of rehabilitation, it provides "close-fitting" rehabilitation services.

*Fall Prevention Function
Via built-in sensors, it monitors the patient’s center of gravity deviation in real time. The lifting belt operates within a safe and effective movement range, providing real-time protection for patients.

*Target Point Lock
CL100-C includes a Target Point Lock function, featuring a fixed parking mechanism made of high-friction materials and a large-area mechanical brake on the track. It can withstand sufficient lateral tension and fully accommodate the instantaneous tension caused by unexpected forward or backward tilting of the patient. This function firmly stabilizes the patient's torso, provides adequate support, and prevents falls and injuries.

Installation, compatibility and training

• Designed for integration with overhead track systems in rehabilitation wards and therapy halls
• Compatibility with multiple sling types and rehabilitation accessories to support progressive therapy stages
• On-site installation, clinician training and maintenance programs recommended to ensure optimal clinical use

Safety and compliance

• Built-in fall prevention and patient-protection features for supervised training
• Clinical monitoring and adjustable parameters support individualized safety profiles
• Contact manufacturer or distributor for detailed compliance, certifications and local regulatory information
